Is your Moto smart watch charging dock not working? This guide walks you through diagnosing, disassembling, and fixing common issues like loose connectors, dirt buildup, or damaged components—no professional tools required. Save money and extend your device’s life with simple, effective repairs.
Key Takeaways
- Diagnose the problem first: Rule out battery, cable, or watch issues before assuming the dock is faulty.
- Clean regularly: Dust and debris are common culprits—use compressed air and isopropyl alcohol for safe cleaning.
- Handle with care: The charging pins and internal wiring are delicate; avoid excessive force during disassembly.
- Use the right tools: A precision screwdriver set, spudger, and magnifying glass make the job easier and safer.
- Test after each step: Reconnect power frequently to confirm your fix is working before reassembling fully.
- Know when to replace: If internal components are cracked or corroded, replacement may be more reliable than repair.
- Prevent future issues: Store your dock in a dry, dust-free area and avoid bending the charging cable.
How to Repair Moto Smart Watch Charging Dock
If your Moto smart watch isn’t charging, the problem might not be the watch itself—it could be the charging dock. Over time, these small but essential accessories can wear out due to dust buildup, physical damage, or loose internal connections. The good news? Many common issues are fixable at home with a few basic tools and some patience.
In this comprehensive guide, you’ll learn how to safely diagnose, disassemble, clean, and repair your Moto smart watch charging dock. Whether you’re dealing with a loose charging pin, a frayed cable, or a completely unresponsive dock, we’ll walk you through each step with clear instructions and practical tips. By the end, you’ll not only have a working dock again but also the knowledge to prevent future problems.
Let’s get started!
Understanding the Moto Smart Watch Charging Dock

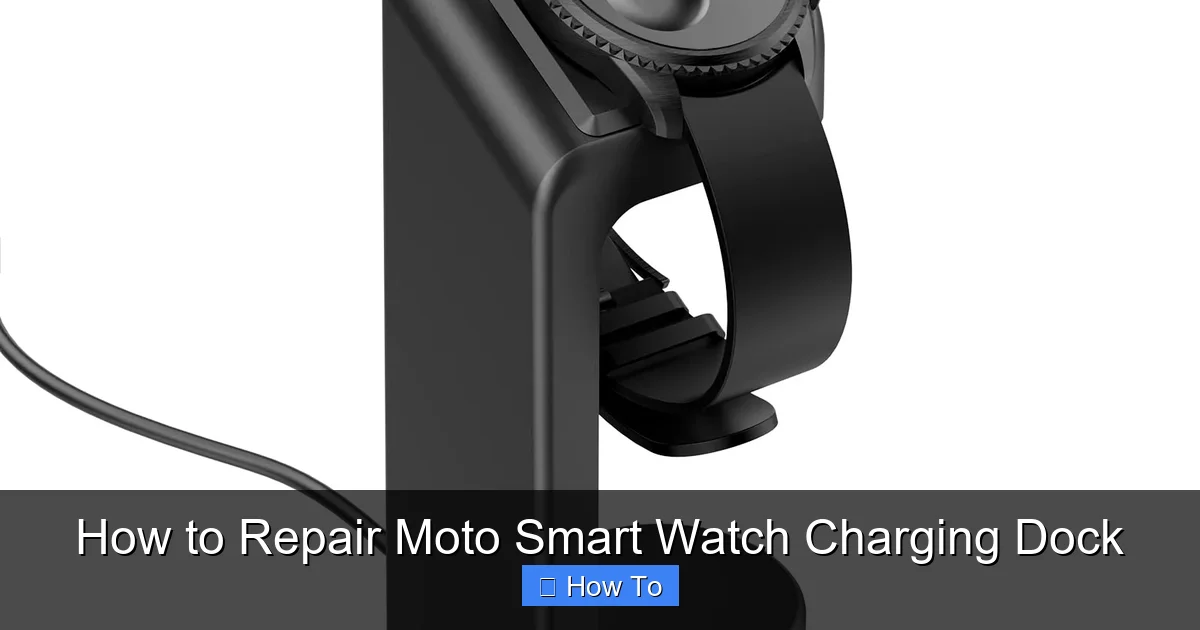

Visual guide about How to Repair Moto Smart Watch Charging Dock
Image source: img.drz.lazcdn.com
Before diving into repairs, it’s important to understand how the charging dock works. The Moto smart watch charging dock is a small magnetic or snap-on accessory that connects to your watch via pogo pins—tiny spring-loaded metal contacts that transfer power from the dock to the watch. These pins align with corresponding pads on the back of the watch, creating a secure connection when docked.
The dock itself typically includes:
– A charging base with magnetic alignment
– Pogo pins for electrical contact
– A USB cable (often micro-USB or USB-C) that connects to a power source
– Internal wiring and a small circuit board
Because the dock is used daily, it’s prone to wear and tear. Common issues include:
– Dirt or lint blocking the charging pins
– Bent or misaligned pogo pins
– Loose internal wiring
– Damaged USB cable
– Corrosion from moisture exposure
Understanding these components helps you identify the root cause of charging problems and apply the right fix.
Tools and Materials You’ll Need
Repairing your Moto smart watch charging dock doesn’t require professional equipment, but having the right tools makes the process smoother and safer. Here’s what you’ll need:
- Precision screwdriver set: Look for Phillips #00 and #0, and flathead sizes under 2mm. These are essential for opening small screws on the dock.
- Plastic spudger or opening tool: Helps pry open the dock casing without scratching or damaging it.
- Tweezers (non-conductive): Useful for handling tiny components and wires.
- Magnifying glass or head loupe: Makes it easier to see small parts and solder joints.
- Isopropyl alcohol (90% or higher): For cleaning contacts and removing grime.
- Cotton swabs or microfiber cloth: Gentle cleaning tools for delicate surfaces.
- Compressed air can: Blows out dust from tight spaces.
- Multimeter (optional but helpful): Tests continuity and checks if power is reaching the pins.
- Soldering iron and solder (advanced repairs): Only needed if you’re fixing broken wires or reattaching loose connections.
- Replacement pogo pins (if available): Can be sourced online if original pins are damaged beyond repair.
Having these tools ready before you begin will save time and reduce frustration. Most are inexpensive and can be reused for future repairs.
Step 1: Diagnose the Problem
Before taking apart your charging dock, it’s crucial to confirm that the issue is actually with the dock and not the watch, cable, or power source. Skipping this step could lead to unnecessary repairs.
Test the Watch and Cable
Start by testing your Moto smart watch with a different charging dock or cable, if available. If the watch charges fine with another dock, the problem is likely with your original dock. If it still doesn’t charge, the issue might be the watch’s charging port or battery.
Next, try using your dock with a different watch (if you have access to one). If the second watch charges, the problem is isolated to your original watch. If not, the dock is the likely culprit.
Check the Power Source
Plug the dock into a different USB port or wall adapter. Sometimes, a weak or faulty power source can mimic a broken dock. Try using a high-quality charger and cable to rule this out.
Inspect for Visible Damage
Look closely at the dock for signs of physical damage:
– Cracks in the plastic casing
– Bent or missing pogo pins
– Frayed or kinked USB cable
– Discoloration or burn marks (indicating overheating)
If you see any of these, it’s a strong indicator that the dock needs repair.
Clean the Charging Area
Dirt, lint, and oil from your skin can accumulate on the charging pins and prevent proper contact. Use a cotton swab dipped in isopropyl alcohol to gently clean the pins and the area around them. Let it dry completely before testing again.
Sometimes, a simple cleaning is all it takes to restore charging functionality.
Step 2: Disassemble the Charging Dock
Once you’ve confirmed the dock is the problem, it’s time to open it up. Be patient and work carefully—rushing can lead to broken parts or lost screws.
Remove the USB Cable (If Detachable)
Some Moto charging docks have a detachable USB cable. If yours does, unplug it from the dock before proceeding. This makes handling the dock easier and reduces strain on the internal wiring.
Locate and Remove Screws
Most docks are held together with small screws hidden under rubber feet or labels. Use a flathead screwdriver or your fingernail to gently peel back any rubber pads. You’ll typically find 2–4 tiny Phillips screws underneath.
Unscrew them slowly and place them in a small container so they don’t get lost.
Pry Open the Casing
Once the screws are out, use a plastic spudger to carefully separate the two halves of the dock. Start at the seam near the charging pins and work your way around. Avoid using metal tools, as they can scratch or crack the plastic.
If the halves are stuck, gently wiggle the spudger to loosen the clips. Take your time—forcing it can break internal components.
Disconnect Internal Components (If Necessary)
Inside, you’ll see the circuit board, pogo pins, and wiring. If the USB cable is soldered directly to the board, you may need to desolder it to fully remove the board. Only do this if you’re comfortable with soldering.
Otherwise, gently lift the board out to access the pins and wiring.
Step 3: Clean the Charging Pins and Contacts
Dirt and corrosion are among the most common causes of charging failure. Even if the pins look clean, microscopic debris can interfere with electrical contact.
Use Compressed Air
Blow compressed air into the pin housing to dislodge any loose dust or lint. Hold the can upright and use short bursts to avoid moisture buildup.
Clean with Isopropyl Alcohol
Dip a cotton swab in isopropyl alcohol and gently wipe each pogo pin. Be careful not to bend the pins—they’re spring-loaded and delicate.
For hard-to-reach areas, use a toothpick wrapped in a small piece of microfiber cloth. Avoid using water or household cleaners, as they can leave residues or cause corrosion.
Check for Corrosion
Look for green or white crusty deposits on the pins or circuit board. This is a sign of corrosion, often caused by moisture. Use a soft brush (like an old toothbrush) and alcohol to scrub it off.
If corrosion is severe, the affected parts may need replacement.
Let It Dry Completely
Allow the dock to air dry for at least 15–20 minutes before reassembling. Any moisture left behind can cause short circuits or further corrosion.
Step 4: Inspect and Repair Internal Components
Now that the dock is open and clean, inspect the internal parts for damage.
Check the Pogo Pins
Gently press each pogo pin to ensure it moves smoothly and springs back. If a pin is stuck, bent, or doesn’t retract, it may need realignment or replacement.
To realign a bent pin, use tweezers to carefully straighten it. Avoid over-bending, as this can weaken the metal.
If a pin is missing or severely damaged, you may need to replace it. Search online for “Moto smart watch pogo pin replacement” and match the size and type.
Inspect the Wiring
Look at the wires connecting the USB port to the circuit board. Check for:
– Fraying or cuts
– Loose solder joints
– Discoloration (sign of overheating)
If a wire is loose, you can re-solder it using a soldering iron. Apply a small amount of solder to reconnect the wire to the board. Be quick—excessive heat can damage the board.
Test Continuity (Optional)
If you have a multimeter, set it to continuity mode and test the connection from the USB port to each pogo pin. Touch one probe to the USB connector and the other to the pin. A beep indicates a complete circuit.
If there’s no beep, there’s a break in the wiring or a faulty connection.
Check the Circuit Board
Look for burnt components, cracked solder joints, or swollen capacitors. These are signs of electrical damage. If you see any, the board may need professional repair or replacement.
Step 5: Reassemble the Dock
Once you’ve cleaned and repaired the internal components, it’s time to put the dock back together.
Reconnect the Circuit Board
If you removed the board, gently place it back into the casing. Ensure all wires are properly routed and not pinched.
Close the Casing
Align the two halves and press them together until you hear soft clicks. Make sure no wires are caught in the seam.
Replace the Screws
Screw the Phillips screws back into their original positions. Don’t overtighten—this can strip the threads or crack the plastic.
Reattach the USB Cable (If Applicable)
If your dock has a detachable cable, plug it back in securely.
Step 6: Test the Repair
Now comes the moment of truth—testing whether your repair worked.
Connect to Power
Plug the dock into a USB charger or computer. Make sure the power source is working.
Dock Your Watch
Place your Moto smart watch on the dock. The watch should show a charging icon or LED indicator within a few seconds.
Monitor Charging
Wait 10–15 minutes and check if the battery level has increased. If it has, your repair was successful.
If the watch still doesn’t charge, double-check your connections, clean the pins again, and ensure the dock is receiving power.
Troubleshooting Common Issues
Even after repair, some problems may persist. Here’s how to handle them:
Watch Charges Intermittently
This is often due to poor contact between the pins and the watch. Clean both the dock and the watch’s charging pads. Ensure the pogo pins are fully extended and not bent.
Dock Gets Hot
Overheating can indicate a short circuit or faulty wiring. Unplug immediately and recheck your solder joints and connections. Avoid using the dock until the issue is resolved.
No Power at All
If the dock shows no signs of life, test the USB cable with another device. If the cable works, the issue may be a blown fuse on the circuit board—this usually requires replacement.
Pins Don’t Spring Back
This suggests the pins are worn out or damaged. Replacement is the best option.
Preventing Future Problems
A little maintenance goes a long way in extending the life of your charging dock.
- Clean monthly: Use compressed air and alcohol to keep the pins free of debris.
- Avoid moisture: Don’t use the dock in humid environments or near water.
- Store properly: Keep the dock in a dry, dust-free case when not in use.
- Handle with care: Don’t yank the USB cable or drop the dock.
- Use original cables: Third-party cables may not deliver consistent power.
By following these tips, you can avoid many common issues and reduce the need for future repairs.
When to Replace Instead of Repair
While many dock issues are fixable, some problems are best solved by replacement.
Consider replacing your dock if:
– The plastic casing is cracked or broken
– Multiple pogo pins are damaged
– The circuit board is visibly burnt or corroded
– The USB port is loose or wobbly
– Repairs haven’t resolved the issue after multiple attempts
Replacement docks are often affordable and widely available online. Look for OEM (original equipment manufacturer) parts for the best compatibility.
Conclusion
Repairing your Moto smart watch charging dock is a practical and cost-effective way to keep your device powered and functional. With the right tools and a careful approach, you can fix common issues like dirty pins, loose wiring, and minor physical damage—all without needing professional help.
Remember to start with diagnosis, work slowly during disassembly, and test after each step. Regular cleaning and proper storage can prevent many problems before they start.
By following this guide, you’ve not only saved money but also gained valuable repair skills that can be applied to other small electronics. Your Moto smart watch will thank you with reliable charging and longer service life.
Now go enjoy your fully functional smart watch—fully charged and ready to go!
