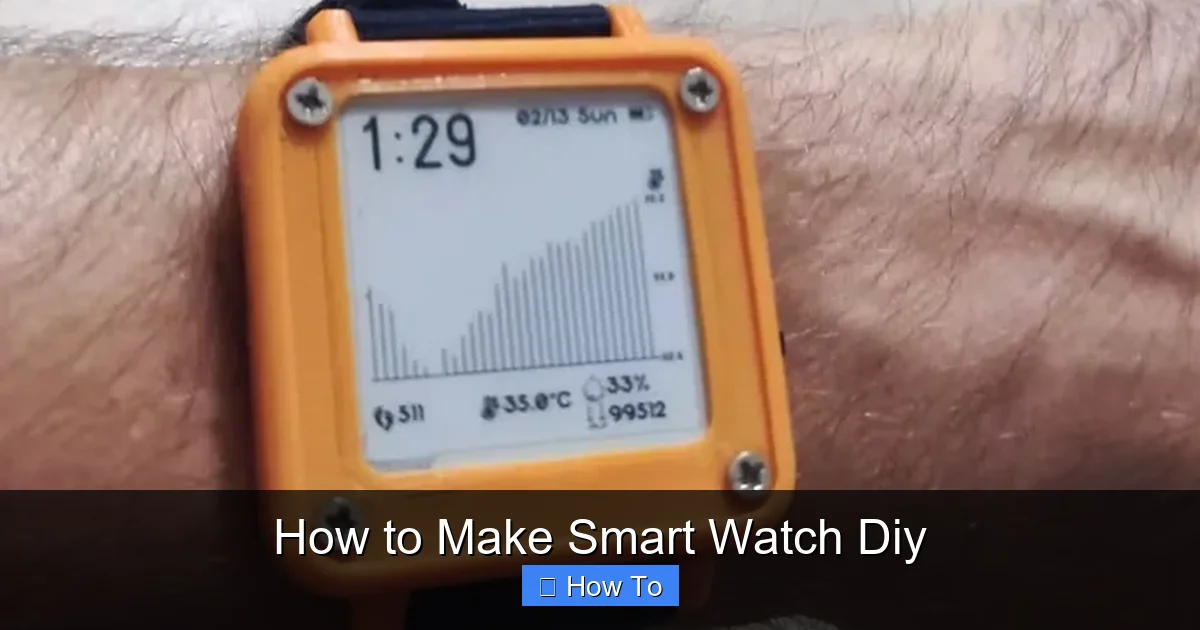

This guide walks you through how to make a smart watch DIY from scratch, using beginner-friendly electronics and open-source software. You’ll learn to assemble, program, and customize your own wearable device with practical tips and troubleshooting advice.
Key Takeaways
- Start with the right components: Choose a microcontroller like ESP32 or Arduino Nano, a small OLED display, and a rechargeable battery for your DIY smart watch.
- Use open-source firmware: Platforms like Arduino IDE or MicroPython let you program your watch easily, even with minimal coding experience.
- Design a compact case: 3D printing or repurposing small containers helps protect internal parts and gives your watch a polished look.
- Focus on core features first: Begin with time, notifications, and step tracking before adding advanced functions like GPS or heart rate monitoring.
- Solder carefully and test often: Double-check connections to avoid short circuits and test each module before final assembly.
- Customize the interface: Personalize your watch face and menu layout using simple code edits or pre-built libraries.
- Keep safety in mind: Always disconnect power when working on circuits and use proper tools to avoid injury.
Introduction: Why Build Your Own Smart Watch?
Have you ever looked at a high-end smart watch and thought, “I could make that myself”? You’re not alone. With the rise of affordable microcontrollers, open-source software, and accessible electronics, building your own smart watch is now within reach—even if you’re a beginner. This guide will show you exactly how to make a smart watch DIY using simple tools, basic coding, and creative problem-solving.
Unlike commercial smart watches, a DIY version lets you control every detail: the design, the features, the battery life, and even the software. Whether you want a minimalist fitness tracker, a retro-style digital watch, or a fully connected device that syncs with your phone, this project puts you in the driver’s seat. Plus, it’s a fantastic way to learn about electronics, programming, and wearable technology.
By the end of this guide, you’ll have a working smart watch that you built with your own hands. You’ll understand how each component works, how to troubleshoot common issues, and how to expand your device with new features over time. Let’s get started!
What You’ll Need: Tools and Components
Visual guide about How to Make Smart Watch Diy
Image source: ai.thestempedia.com
Before diving into assembly, it’s important to gather all the necessary tools and parts. Don’t worry—most of these are affordable and easy to find online or at local electronics stores.
Essential Components
- Microcontroller: The brain of your smart watch. The ESP32 is a popular choice because it has built-in Wi-Fi and Bluetooth, making it ideal for connecting to your phone. Alternatives include the Arduino Nano 33 IoT or the Raspberry Pi Pico.
- OLED Display: A small (0.96” or 1.3”) OLED screen provides a crisp, low-power display for time, notifications, and menus. Look for I2C-compatible models for easier wiring.
- Battery: A rechargeable lithium-polymer (LiPo) battery (3.7V, 100–200mAh) powers your watch. Make sure it fits inside your case and has enough capacity for daily use.
- Charging Module: A TP4056-based USB charging board safely charges your LiPo battery from a USB port or power bank.
- Vibration Motor (optional): Adds haptic feedback for notifications or alarms.
- Push Buttons: At least two tactile buttons for navigation (e.g., menu, select, back).
- Strap or Band: You can 3D print a custom band, use a watch strap from an old watch, or repurpose a silicone bracelet.
- Wires and Connectors: Use flexible jumper wires or solder directly for a more permanent connection.
Tools Required
- Soldering iron and solder
- Wire strippers and cutters
- Multimeter (for testing connections)
- Hot glue gun or epoxy (for securing components)
- Small screwdrivers and pliers
- Computer with USB port (for programming)
- 3D printer (optional, for custom case)
Recommended Software
- Arduino IDE: Free, beginner-friendly, and supports ESP32 and Arduino boards.
- PlatformIO: A more advanced alternative with better project management.
- Fusion 360 or Tinkercad: For designing a custom 3D-printed case.
Step 1: Planning Your Smart Watch Design
Before touching any wires, take time to plan your smart watch. This step saves time, reduces errors, and ensures your final product meets your needs.
Define Your Goals
Ask yourself: What do I want this watch to do? Common features include:
- Displaying the time and date
- Receiving smartphone notifications (calls, texts, apps)
- Tracking steps or activity
- Showing weather updates
- Vibrating for alarms or reminders
Start simple. A basic watch with time and notifications is a great first project. You can always add more features later.
Sketch the Layout
Draw a rough sketch of your watch face and internal layout. Consider:
- Where will the screen go?
- How will the buttons be positioned?
- How will the battery and microcontroller fit?
- Will the charging port be accessible?
This sketch helps you visualize space constraints and plan wiring routes.
Choose a Case Style
You have several options:
- 3D-printed case: Most customizable. Design it in Tinkercad or Fusion 360 and print it using PLA or ABS filament.
- Repurposed container: Use a small plastic box, Altoids tin, or old watch case. Drill holes for buttons and screen.
- Modular design: Build a two-part case (front and back) for easy access to components.
If you’re new to 3D printing, start with a pre-designed case from Thingiverse or Printables. Many are free and optimized for common components.
Step 2: Assembling the Circuit
Now it’s time to connect the hardware. This step requires care—especially when soldering—but it’s manageable with patience.
Prepare the Microcontroller
If you’re using an ESP32, make sure it’s flashed with the correct firmware. Most ESP32 boards come pre-loaded, but you may need to install drivers on your computer.
Connect the OLED Display
The OLED display typically uses I2C communication, which requires only four wires:
- VCC → 3.3V on ESP32
- GND → Ground
- SCL → GPIO 22 (or designated SCL pin)
- SDA → GPIO 21 (or designated SDA pin)
Double-check the pinout of your specific display and microcontroller. Reversing VCC and GND can damage components.
Wire the Buttons
Connect two push buttons to GPIO pins (e.g., GPIO 13 and GPIO 14) and ground. Use pull-down resistors (10kΩ) to prevent false triggers. Alternatively, use the internal pull-down resistors in the ESP32 by enabling them in code.
Add the Battery and Charging Module
Connect the LiPo battery to the TP4056 charging module’s B+ and B- terminals. Then connect the module’s OUT+ and OUT- to the ESP32’s 3.3V and GND pins. This setup allows you to charge the battery via USB while powering the watch.
Tip: Add a small switch between the battery and the charging module to turn the watch on and off.
Optional: Add a Vibration Motor
Connect a tiny vibration motor to a GPIO pin and ground. Use a transistor or MOSFET if the motor draws more current than the pin can handle.
Test Each Connection
Before sealing everything, power up the circuit and test:
- Does the screen turn on?
- Do the buttons respond?
- Does the battery charge when plugged in?
Use a multimeter to check for short circuits or loose connections.
Step 3: Programming the Smart Watch
With the hardware ready, it’s time to bring your watch to life with code.
Set Up the Arduino IDE
1. Download and install the Arduino IDE from arduino.cc.
2. Install the ESP32 board package: Go to File > Preferences > Additional Boards Manager URLs, and add:
https://dl.espressif.com/dl/package_esp32_index.json
3. Open Tools > Board > Boards Manager, search for “ESP32,” and install the package.
4. Select your board (e.g., “ESP32 Dev Module”) under Tools > Board.
Install Required Libraries
You’ll need libraries for the OLED display and Wi-Fi/Bluetooth functionality:
- Adafruit SSD1306: For controlling the OLED screen.
- Adafruit GFX: Graphics library for drawing text and shapes.
- WiFiManager: Simplifies Wi-Fi connection setup.
- BluetoothSerial: For receiving notifications from your phone.
Install these via Sketch > Include Library > Manage Libraries.
Write the Basic Code
Start with a simple program that displays the time. Here’s a basic example:
“`cpp
#include
#include
#include
#include
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
BluetoothSerial SerialBT;
void setup() {
display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1306_WHITE);
display.setCursor(0, 0);
display.println(“Hello, DIY Watch!”);
display.display();
SerialBT.begin(“DIY_SmartWatch”);
}
void loop() {
// Add time and notification logic here
delay(1000);
}
“`
This code initializes the screen and Bluetooth. Next, add real-time clock (RTC) functionality using an NTP server or an external RTC module like DS3231.
Add Smartphone Notifications
Use Bluetooth to receive notifications from your phone. On Android, apps like “Serial Bluetooth Terminal” or “BLE Monitor” can send data to your watch. On iOS, options are more limited due to restrictions, but you can use custom apps or jailbreak tools.
When a notification arrives, display it on the screen and trigger the vibration motor.
Create a Menu System
Use the buttons to navigate a simple menu:
- Press Button 1: Show time
- Press Button 2: Show notifications
- Hold Button 1: Enter settings
Use a state machine in your code to manage different screens.
Step 4: Building the Case
A good case protects your electronics and makes your watch wearable.
3D Printing a Custom Case
If you have access to a 3D printer:
1. Design the case in Tinkercad (beginner-friendly) or Fusion 360 (advanced).
2. Include cutouts for the screen, buttons, and charging port.
3. Print with PLA for durability and ease of printing.
4. Sand rough edges and test-fit all components.
Using a Pre-Made Container
If you don’t have a 3D printer:
1. Choose a small, flat container (e.g., a pill bottle or watch box).
2. Use a drill or Dremel to create holes for the screen and buttons.
3. Secure components with hot glue or double-sided tape.
4. Attach a strap using screws, glue, or zip ties.
Final Assembly Tips
- Keep wires short and tidy to save space.
- Use heat shrink tubing to insulate solder joints.
- Test the watch before closing the case completely.
- Add a small on/off switch for battery conservation.
Step 5: Testing and Troubleshooting
Even the best plans can run into issues. Here’s how to fix common problems.
Screen Not Turning On
- Check power connections (VCC and GND).
- Verify I2C address (usually 0x3C or 0x3D).
- Ensure the OLED library matches your screen size.
Buttons Not Responding
- Confirm GPIO pin numbers in code.
- Check for loose solder joints.
- Enable internal pull-up/pull-down resistors.
Battery Draining Too Fast
- Turn off Wi-Fi/Bluetooth when not in use.
- Use deep sleep mode between updates.
- Replace the battery with a higher-capacity one.
Bluetooth Not Connecting
- Ensure your phone supports Bluetooth Serial (SPP).
- Check pairing settings on both devices.
- Update the Bluetooth library.
Watch Overheating
- Check for short circuits.
- Ensure the battery isn’t damaged.
- Reduce CPU usage in code.
Customizing Your Smart Watch
Once your watch is working, the fun begins—customization!
Change the Watch Face
Edit the code to display different fonts, colors (on monochrome screens, use contrast), or animations. Add a retro digital look or a minimalist analog-style display.
Add New Features
- Step Counter: Use an accelerometer (e.g., MPU6050) to track movement.
- Weather Updates: Fetch data from OpenWeatherMap via Wi-Fi.
- Music Control: Use Bluetooth to play/pause music on your phone.
- Timer and Stopwatch: Add countdown and lap functions.
Improve Battery Life
- Use deep sleep mode when idle.
- Dim the screen after inactivity.
- Reduce update frequency for sensors.
Share Your Design
Upload your code, 3D models, and build guide to GitHub, Instructables, or Reddit. Help others learn how to make a smart watch DIY!
Conclusion: You Built a Smart Watch!
Congratulations! You’ve successfully learned how to make a smart watch DIY from scratch. This project combines electronics, coding, and creativity into a wearable device that’s truly your own.
Building a smart watch isn’t just about the end product—it’s about the journey. You’ve gained hands-on experience with microcontrollers, sensors, and wireless communication. You’ve solved real-world problems and customized a device to fit your lifestyle.
As you continue experimenting, you can add more sensors, improve the interface, or even design a companion app. The possibilities are endless.
Remember, every expert was once a beginner. Keep tinkering, keep learning, and most importantly—have fun. Your next innovation might just start with a simple DIY smart watch.
