How to Make Smart Watch Charger

Discover how to make a smart watch charger using basic electronics and everyday tools. This DIY guide walks you through sourcing parts, building the circuit, and safely testing your custom charger—perfect for tech tinkerers and smartwatch owners.

Key Takeaways

• Understand the basics of smart watch charging: Most smartwatches use inductive charging or magnetic pins, so your DIY charger must match your device’s voltage and connector type.
• Gather the right components: You’ll need a USB cable, copper wire, a small PCB, resistors, and a soldering iron to build a functional charger.
• Safety first: Always disconnect power when working and use insulated tools to avoid electric shock or damaging your smartwatch.
• Test before use: Use a multimeter to check voltage and polarity before connecting your smartwatch to prevent damage.
• Customize for your model: Adjust the design based on your smartwatch brand (e.g., Apple Watch, Samsung Galaxy Watch) for optimal compatibility.
• Save money and reduce waste: Making your own charger is cost-effective and eco-friendly compared to buying replacements.
• Learn valuable skills: This project teaches basic electronics, soldering, and circuit design—great for beginners and hobbyists.

How to Make Smart Watch Charger: A Complete DIY Guide

Have you ever been stuck with a dead smartwatch and no charger in sight? Or maybe you’ve lost your original charger and don’t want to spend $30–$50 on a replacement? What if you could make a smart watch charger at home using simple tools and affordable parts? It’s not only possible—it’s easier than you think!

In this comprehensive guide, we’ll walk you through the entire process of building your own smart watch charger from scratch. Whether you’re a tech enthusiast, a DIY beginner, or just looking to save money, this project is perfect for you. You’ll learn how to identify the right components, assemble a safe and functional charging circuit, and test it without risking damage to your device.

By the end of this guide, you’ll not only have a working charger but also a deeper understanding of how smartwatch charging works. Plus, you’ll gain hands-on experience with basic electronics—skills that can be applied to future projects. So grab your tools, clear a workspace, and let’s get started!

Why Make Your Own Smart Watch Charger?

Before diving into the build, let’s talk about why you might want to make your own charger instead of buying one. First, it’s cost-effective. A typical smartwatch charger costs between $20 and $50, depending on the brand. But the parts needed to build one yourself can be purchased for under $15—sometimes even less if you already have some components lying around.

Second, it’s eco-friendly. Electronic waste is a growing problem, and replacing chargers contributes to it. By making your own, you reduce demand for mass-produced accessories and give new life to old cables or spare parts.

Third, it’s a great way to learn electronics. This project introduces you to concepts like voltage regulation, circuit design, and soldering—all valuable skills for anyone interested in tech, engineering, or DIY repairs.

Finally, it’s customizable. Store-bought chargers are one-size-fits-all, but your DIY version can be tailored to your specific smartwatch model, charging habits, or even aesthetic preferences. Want a longer cable? A different color? No problem—you’re in control.

Understanding How Smart Watch Charging Works

To build a smart watch charger, you first need to understand how these devices charge. Most modern smartwatches—like the Apple Watch, Samsung Galaxy Watch, or Fitbit—use one of two charging methods: magnetic inductive charging or pogo pin connectors.

Magnetic Inductive Charging

This is the most common method, especially for Apple Watches. It uses electromagnetic fields to transfer energy between two coils: one in the charger and one in the watch. When you place the watch on the charger, the coils align, and power flows wirelessly. This method is convenient because there’s no physical plug—just snap and charge.

However, inductive charging requires precise alignment and specific coil sizes. If your DIY charger doesn’t match the original coil dimensions or frequency, it won’t work efficiently—or at all.

Pogo Pin Charging

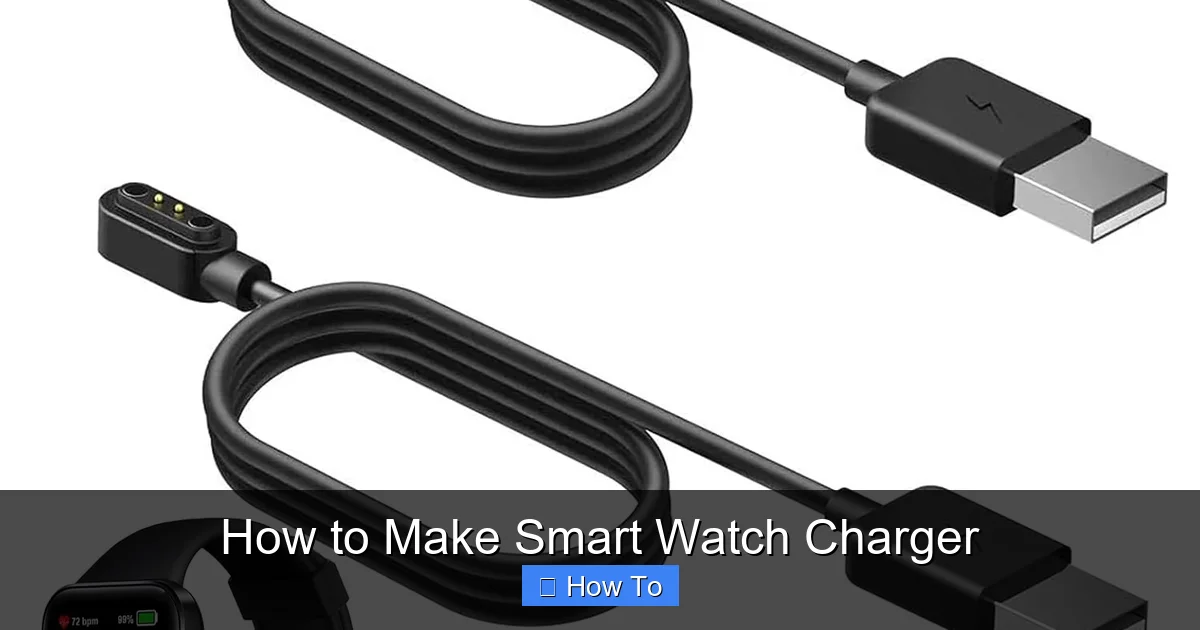

Some smartwatches, like certain Garmin or Amazfit models, use small metal pins (called pogo pins) that make contact with charging pads on the watch. These pins deliver power directly through physical contact. This method is simpler to replicate because it doesn’t rely on wireless induction—just proper alignment and correct voltage.

Regardless of the method, all smartwatch chargers must deliver a specific voltage (usually 5V) and current (typically 0.5A to 1A). Too much voltage can damage the battery; too little, and it won’t charge. That’s why understanding your device’s charging specs is crucial.

Tools and Materials You’ll Need

Now that you know how smartwatch charging works, let’s gather the tools and materials. Don’t worry—you don’t need a professional electronics lab. Most items can be found at hardware stores, electronics retailers, or online marketplaces like Amazon or eBay.

Essential Tools

• Soldering iron and solder: For connecting wires and components securely.
• Wire strippers: To remove insulation from wires without damaging the copper inside.
• Multimeter: To test voltage, current, and continuity. This is critical for safety.
• Small pliers and tweezers: For handling tiny components.
• Heat shrink tubing or electrical tape: To insulate connections and prevent short circuits.
• Helping hands or clamps: To hold parts steady while soldering.

Required Materials

• USB cable (micro-USB or USB-C): This will serve as the power source. Cut off the end that plugs into your phone or adapter.
• Copper wire (22–24 AWG): For creating charging coils or connecting pins.
• Small PCB (printed circuit board) or perfboard: To mount components neatly.
• Resistors (optional): To regulate current if needed.
• Diode (optional): To prevent reverse current flow.
• Magnetic charging pad or pogo pins: Depending on your smartwatch type.
• Hot glue gun: For securing components and adding strain relief.

Optional but Helpful

• 3D printer: To create a custom housing for your charger.
• LED indicator: To show when the charger is powered.
• Switch: To turn the charger on and off.

Before you start, double-check your smartwatch’s charging specifications. Look in the user manual or search online for terms like “charging voltage” and “connector type.” This will help you choose the right components and avoid mistakes.

Step-by-Step Guide to Building Your Smart Watch Charger

Now comes the fun part—building your charger! We’ll break this down into clear, manageable steps. Follow along carefully, and don’t rush. Safety and precision are key.

Step 1: Prepare the USB Cable

Start by cutting the end of your USB cable that plugs into your phone or tablet. Use wire strippers to carefully remove about 2 inches of the outer insulation. Inside, you’ll find four smaller wires: red (positive), black (negative), and two data wires (usually white and green).

Strip about 1/4 inch of insulation from the red and black wires. These carry power. The data wires aren’t needed for charging, so you can twist them together and insulate them with electrical tape or cut them off.

Pro Tip: Use your multimeter to confirm which wire is positive (red) and which is negative (black). Set the multimeter to DC voltage, touch the probes to the wires, and plug the USB end into a power source. The red wire should show +5V.

Step 2: Identify Your Charging Method

Next, determine whether your smartwatch uses inductive charging or pogo pins. If it snaps onto a magnetic pad (like an Apple Watch), you’ll need to build an inductive coil. If it has small metal contacts on the back, you’ll need pogo pins.

For this guide, we’ll cover both methods. Choose the one that matches your device.

Step 3: Build the Inductive Charging Coil (for Magnetic Chargers)

If your smartwatch uses magnetic charging, you’ll need to create a coil that matches the original charger’s size and shape.

Start by wrapping copper wire around a cylindrical object (like a marker or small bottle) to form a coil. Aim for 8–12 turns, depending on the size of your watch’s charging area. Keep the turns tight and even.

Once the coil is formed, carefully remove it and secure the ends with a small dab of hot glue to prevent unraveling. Leave about 3 inches of wire on each end for connections.

Solder the red wire from the USB cable to one end of the coil and the black wire to the other. Use heat shrink tubing to cover the solder joints and prevent short circuits.

Safety Note: Inductive charging requires precise frequency matching. Without specialized equipment, your DIY coil may not charge as efficiently as the original. It might work slowly or only when perfectly aligned.

Step 4: Build the Pogo Pin Connector (for Pin-Based Chargers)

If your smartwatch uses pogo pins, you’ll need to replicate the contact points.

Start by identifying the number and spacing of the pins on your watch. Most have 2–4 pins. You can use actual pogo pins (available online) or fashion your own using small metal rods or stripped wire ends.

Mount the pins on a small piece of perfboard, spacing them to match your watch. Solder the red wire to the positive pin(s) and the black wire to the negative pin(s). Double-check polarity—reversing it can damage your watch.

Use hot glue to secure the pins and wires in place. This adds durability and prevents accidental shorts.

Step 5: Add a Protective Housing (Optional)

To make your charger look neat and protect the electronics, consider adding a housing. You can use a small plastic box, 3D-print a custom case, or even wrap it in electrical tape.

If using a box, drill small holes for the USB cable and charging coil/pins. Secure the components inside with hot glue. Make sure nothing is loose or touching exposed wires.

Pro Tip: Add an LED indicator by connecting a small LED and resistor in parallel with the power wires. This lets you know when the charger is on.

Step 6: Test Your Charger

Before connecting your smartwatch, test the charger with your multimeter.

Set the multimeter to DC voltage and touch the probes to the charging contacts (coil or pins). Plug the USB end into a power source (like a phone charger or computer). You should see a reading close to 5V.

Next, check for continuity to ensure there are no short circuits. Then, carefully place your smartwatch on the charger. If it’s inductive, align it carefully. If it’s pin-based, press gently to make contact.

Watch for signs of charging: a battery icon, vibration, or screen activation. If nothing happens, double-check your connections, polarity, and alignment.

Troubleshooting Common Issues

Even with careful assembly, things can go wrong. Here are some common problems and how to fix them.

Charger Doesn’t Work

• Check polarity: Reversed positive and negative wires are a common mistake. Use your multimeter to verify.
• Test voltage: Ensure you’re getting 5V at the charging point. If not, the USB cable or power source may be faulty.
• Inspect solder joints: Cold or loose solder can break connections. Reheat and reflow if needed.

Charging Is Slow or Intermittent

• Alignment issues: For inductive chargers, even a slight misalignment can reduce efficiency. Try repositioning the coil or watch.
• Weak power source: Some USB ports or adapters don’t deliver enough current. Use a high-quality 5V/1A adapter.
• Loose connections: Check all wires and pins for secure contact.

Smartwatch Gets Hot

• Overvoltage: If the voltage is too high, it can overheat the battery. Recheck with your multimeter.
• Short circuit: A direct connection between positive and negative can cause overheating. Disconnect immediately and inspect for exposed wires.

LED Doesn’t Light Up

• Wrong resistor value: The LED may be too dim or burned out. Use a 220-ohm resistor for most 5V circuits.
• Faulty LED: Test the LED separately with a battery.

Safety Tips and Best Practices

Working with electricity requires caution. Follow these safety guidelines to protect yourself and your devices.

• Always disconnect power when soldering or making changes.
• Use insulated tools to avoid electric shock.
• Work in a well-ventilated area when soldering to avoid inhaling fumes.
• Never leave your charger unattended while plugged in.
• Do not use damaged cables or components.
• Keep water and flammable materials away from your workspace.

Remember: This charger is DIY and not certified by any manufacturer. Use it at your own risk. If you’re unsure, consult a professional or stick to official chargers for daily use.

Conclusion

Congratulations! You’ve just built your own smart watch charger. Not only have you saved money and reduced waste, but you’ve also gained valuable hands-on experience in electronics and problem-solving.

This project proves that with a little knowledge, the right tools, and careful attention to detail, you can create functional tech accessories at home. Whether you’re fixing a broken charger, customizing your setup, or just enjoying the thrill of DIY, the skills you’ve learned here can be applied to countless other projects.

So go ahead—charge your smartwatch with pride. And the next time someone asks, “Where’d you get that charger?” you can say, “I made it myself.”
