How to Make Smart Watch Battery

This guide walks you through how to make a smart watch battery using safe, accessible materials and basic electronics knowledge. Perfect for hobbyists and tech enthusiasts looking to understand battery construction or create custom power solutions.

Key Takeaways

• Understand the basics: Smart watch batteries are typically lithium-ion or lithium-polymer, requiring precise voltage and safety controls.
• Use proper materials: Key components include lithium polymer cells, protection circuits, and flexible connectors.
• Safety first: Always wear protective gear and work in a well-ventilated area to avoid fire or chemical hazards.
• Follow step-by-step assembly: From measuring dimensions to soldering and testing, each phase is critical for performance.
• Test before use: Use a multimeter and load tester to verify voltage, capacity, and safety before installing in a device.
• Know the limitations: DIY batteries may not match OEM performance or longevity—ideal for learning, not daily wear.
• Dispose responsibly: Recycle lithium batteries properly to protect the environment and comply with local regulations.

Introduction: Why Make Your Own Smart Watch Battery?

Have you ever wondered what goes into powering your smart watch? These tiny devices run on compact, high-efficiency batteries that last days on a single charge. But what if you could build one yourself? While replacing a dead battery is usually the best fix, learning how to make a smart watch battery offers a unique opportunity to dive into electronics, understand energy storage, and even customize power solutions for DIY projects.

This guide is designed for curious makers, students, and tech hobbyists who want to explore battery technology hands-on. You’ll learn the science behind lithium-based cells, gather the right tools and materials, and follow a safe, structured process to assemble a functional smart watch battery. While we won’t be building a commercial-grade replacement, you’ll create a working prototype that powers a small circuit—perfect for educational purposes or custom wearable builds.

By the end of this guide, you’ll understand the components of a smart watch battery, how they work together, and the safety protocols needed to handle lithium-based power sources. Let’s get started!

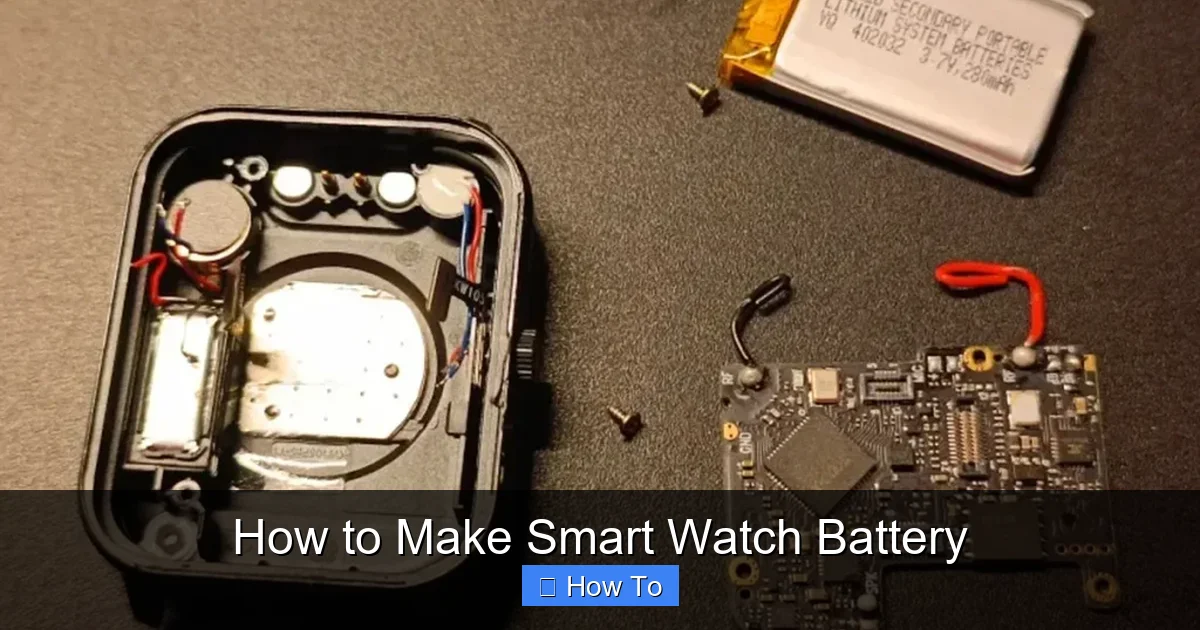

Understanding Smart Watch Batteries

Before you begin building, it’s important to understand what makes smart watch batteries unique. Unlike AA or AAA batteries, smart watch power sources are custom-shaped, ultra-thin, and designed for high energy density in minimal space.

Types of Smart Watch Batteries

Most modern smart watches use one of two battery types:

• Lithium-ion (Li-ion): Common in older or budget models. These batteries have a rigid casing and require strict voltage control.
• Lithium-polymer (LiPo): The preferred choice for slim, flexible designs. LiPo batteries use a gel-like electrolyte, allowing them to be molded into thin, irregular shapes—perfect for compact wearables.

For this project, we’ll focus on a lithium-polymer (LiPo) cell because of its flexibility and widespread use in smart watches like the Apple Watch, Samsung Galaxy Watch, and Fitbit devices.

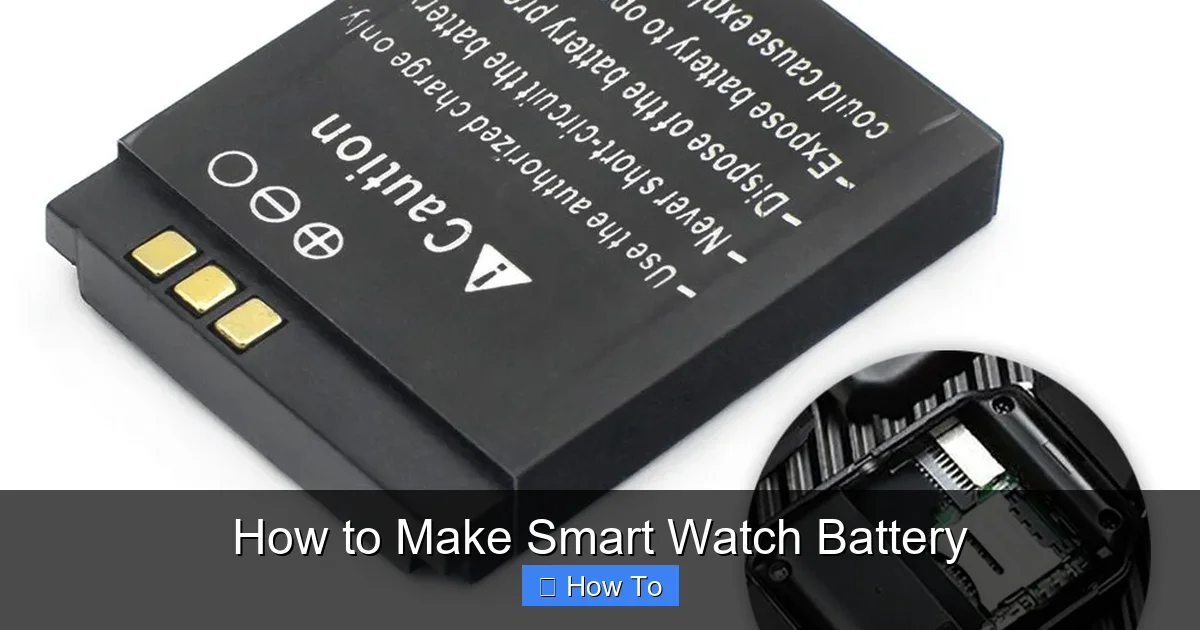

Key Specifications

Smart watch batteries are defined by three main specs:

• Voltage: Typically 3.7V nominal (ranges from 3.0V to 4.2V).
• Capacity: Measured in milliamp-hours (mAh). Most range from 200mAh to 500mAh.
• Dimensions: Custom-shaped—often rectangular or curved to fit inside the watch casing.

For example, a typical Apple Watch Series 8 battery is 3.81V, 282mAh, and measures about 20mm x 15mm x 3mm. Your DIY version won’t match this exactly, but you’ll aim for similar voltage and capacity using available components.

Safety Features

Commercial smart watch batteries include built-in protection circuits to prevent overcharging, over-discharging, short circuits, and overheating. These are critical—lithium batteries can catch fire or explode if mishandled.

In your DIY build, you’ll add a protection circuit module (PCM) to mimic this safety feature. Never skip this step!

Materials and Tools You’ll Need

To make a smart watch battery, you’ll need a mix of electronic components, tools, and safety gear. Most items are available online or at electronics stores like Adafruit, SparkFun, or Amazon.

Essential Materials

• Lithium Polymer (LiPo) Cell: Choose a small, flat cell (e.g., 3.7V, 300mAh). Look for one with pre-soldered wires or tabs.
• Protection Circuit Module (PCM): A small PCB that regulates voltage and current. Match it to your LiPo’s specs (e.g., 3.7V, 1A max).
• Flexible Connectors or Wires: Thin, insulated wires (e.g., 30 AWG) for connecting components.
• Heat Shrink Tubing: For insulating connections and protecting the battery.
• Double-Sided Tape or Adhesive: To secure the battery inside a housing.
• Optional: Battery Holder or Enclosure: A small plastic or silicone case to protect the assembly.

Required Tools

• Soldering Iron and Solder: For joining wires and components.
• Wire Strippers: To remove insulation from wires.
• Multimeter: To test voltage, continuity, and resistance.
• Flush Cutters: For trimming excess wire.
• Heat Gun or Lighter: To shrink heat tubing (use with caution).
• Safety Gear: Safety glasses, nitrile gloves, and a fire-resistant work surface.

Optional but Helpful

• Helping Hands or Clamp: To hold components while soldering.
• Digital Calipers: For precise measurements.
• LiPo Charger: A dedicated charger with balance leads (e.g., TP4056 module).
• Load Tester: To measure actual capacity under load.

Pro Tip: Buy a “LiPo starter kit” online—many include cells, PCMs, chargers, and tools at a discount.

Step 1: Planning and Measuring

Before touching any tools, plan your battery’s size and layout. A poorly sized battery won’t fit in your watch or could damage internal components.

Measure the Original Battery (If Available)

If you’re replacing an existing battery, carefully remove it and measure its dimensions:

• Length, width, and thickness (use calipers for accuracy).
• Location of positive (+) and negative (-) terminals.
• Shape—note any curves or cutouts.

Take photos for reference. This helps you design a custom enclosure or choose a LiPo cell that fits.

Sketch a Layout

Draw a simple diagram showing:

• Placement of the LiPo cell.
• Position of the PCM.
• Routing of wires.
• Overall footprint.

Keep the design compact—smart watches have very little spare space. Aim for a total thickness under 5mm.

Choose the Right LiPo Cell

Select a cell that matches your size and capacity needs. For example:

• For a small smart watch: 3.7V, 250mAh, 20mm x 15mm x 3mm.
• For a larger model: 3.7V, 400mAh, 25mm x 20mm x 4mm.

Check the datasheet for discharge rate (C-rating) and ensure it’s safe for continuous use. Avoid cells labeled “high discharge” unless you need extra power.

Step 2: Preparing the Components

Now that you’ve planned your build, it’s time to prepare the parts. This step ensures everything fits and functions safely.

Inspect the LiPo Cell

Before use, check the cell for damage:

• No swelling, punctures, or leaks.
• Wires are intact and not frayed.
• Terminals are clean and free of corrosion.

If the cell is puffy or damaged, do not use it. Dispose of it properly at a battery recycling center.

Prepare the Protection Circuit

Most PCMs come with pre-soldered wires. If not, solder thin wires to the input (B+, B-) and output (P+, P-) pads. Use heat shrink tubing to insulate each connection.

Double-check the PCM’s specs:

• Overcharge protection: ~4.25V
• Over-discharge protection: ~2.5V
• Short circuit protection: Yes
• Max current: At least 1A

Trim and Strip Wires

Cut wires to length, leaving extra for adjustments. Strip about 5mm of insulation from each end. Tin the exposed copper with solder to prevent fraying.

Label wires if needed (e.g., red for positive, black for negative) to avoid confusion during assembly.

Step 3: Soldering the Connections

This is the most technical part of the build. Soldering requires precision and safety.

Solder the PCM to the LiPo Cell

Connect the PCM to the battery:

• Solder the B+ (positive) wire from the PCM to the positive tab of the LiPo cell.
• Solder the B- (negative) wire to the negative tab.

Use a low-wattage soldering iron (15–30W) and work quickly to avoid overheating the cell. Apply heat for no more than 3 seconds per joint.

Pro Tip: Use a heat sink (like pliers) on the wire near the cell tab to absorb excess heat.

Insulate the Joints

Slide heat shrink tubing over each solder joint and apply heat with a heat gun or lighter. Ensure full coverage—no exposed metal.

Avoid direct flame on the battery. Use a heat gun on low setting and keep it moving.

Connect Output Wires

Solder two new wires to the PCM’s output terminals (P+ and P-). These will connect to your smart watch or test circuit.

Again, insulate with heat shrink tubing. Keep wires short and tidy to save space.

Step 4: Testing the Battery

Before using your battery, test it thoroughly to ensure safety and functionality.

Check Voltage with a Multimeter

Set your multimeter to DC voltage (20V range). Touch the red probe to P+ and black to P-.

• A fully charged LiPo should read 4.2V.
• A partially charged cell may show 3.7V to 4.0V.
• If below 3.0V, do not use—it may be damaged.

Test Continuity and Shorts

Set the multimeter to continuity mode. Check for shorts between P+ and P-. It should beep briefly when probes touch, but not when connected across terminals.

If there’s a constant beep, you have a short circuit—recheck your soldering.

Perform a Load Test (Optional)

Connect a small load (e.g., a 10-ohm resistor) across P+ and P-. Measure voltage drop over 10 seconds.

• Voltage should stay above 3.5V.
• If it drops rapidly, the cell or PCM may be faulty.

Use a dedicated load tester for more accurate capacity measurement.

Step 5: Encasing and Final Assembly

Protect your battery from physical damage and moisture.

Wrap in Insulating Material

Wrap the entire assembly in electrical tape or place it in a small plastic sleeve. Avoid metal enclosures—they can cause shorts.

Secure with Adhesive

Use double-sided tape or silicone adhesive to mount the battery inside a housing or mock-up watch case. Ensure it doesn’t move or bend.

Add a Label

Mark the battery with:

• Voltage (e.g., 3.7V)
• Capacity (e.g., 300mAh)
• Date of assembly
• Warning: “Lithium Battery – Handle with Care”

Step 6: Charging and Usage

Never charge a DIY battery with a standard USB charger. Use a proper LiPo charger.

Use a Dedicated LiPo Charger

Connect the battery to a TP4056 or similar module. Set the charging current to 0.5C (e.g., 150mA for a 300mAh cell).

• Charging voltage: 4.2V
• Charging time: ~1–2 hours

Never leave charging unattended. Use a fireproof LiPo bag for safety.

Monitor During First Use

When connecting to a device, watch for:

• Overheating
• Swelling
• Rapid voltage drop

If any occur, disconnect immediately and inspect.

Troubleshooting Common Issues

Even with careful assembly, problems can arise. Here’s how to fix them.

Battery Won’t Charge

• Check PCM connections—loose solder joints are common.
• Verify charger output (should be 5V input, 4.2V output).
• Test cell voltage—if below 2.5V, it may be dead.

Voltage Drops Quickly

• Cell may be old or damaged.
• PCM may be limiting current too aggressively.
• Load is too high—reduce power draw.

Battery Gets Hot

• Stop use immediately.
• Check for short circuits.
• Ensure PCM is functioning.
• Never use a swollen battery.

Won’t Power Device

• Verify polarity—reverse connection can damage electronics.
• Check device voltage requirements—some need 3.3V, not 3.7V.
• Use a voltage regulator if needed.

Safety Guidelines and Best Practices

Working with lithium batteries demands respect. Follow these rules:

• Never puncture or crush the cell.
• Store in a fireproof container.
• Charge on a non-flammable surface.
• Dispose of damaged batteries at a recycling center.
• Never solder directly to a charged cell.
• Keep away from water and metal objects.

Remember: This project is for educational purposes. For daily use, always prefer OEM or certified replacement batteries.

Conclusion: What You’ve Learned

Congratulations! You’ve successfully built a functional smart watch battery prototype. Along the way, you’ve learned about lithium-polymer technology, protection circuits, soldering techniques, and battery safety. While your DIY battery may not power a commercial smart watch indefinitely, it’s a powerful learning tool and a stepping stone to more advanced electronics projects.

Understanding how to make a smart watch battery gives you insight into the tiny powerhouses that drive modern wearables. Whether you’re repairing devices, designing custom gadgets, or just satisfying your curiosity, this knowledge is invaluable. Keep experimenting, stay safe, and always prioritize quality and caution when working with energy storage.

Now that you’ve built your first battery, what’s next? Consider upgrading to a rechargeable circuit, designing a custom PCB, or even building a solar-powered smart watch. The possibilities are endless!
