This guide walks you through building a fully functional Raspberry Pi smart watch from scratch. You’ll learn how to assemble the hardware, install the OS, code basic features, and customize your wearable device for everyday use.

Key Takeaways

  • Choose the right Raspberry Pi model: The Raspberry Pi Zero or Zero 2 W is ideal for compact smart watch builds due to its small size and low power consumption.
  • Select a compatible display: Use a 1.3″ to 1.8″ SPI or I2C OLED or TFT screen for clear visuals and easy integration with the Pi.
  • Power it efficiently: A 500mAh–1000mAh lithium polymer battery with a charging module ensures long runtime and safe operation.
  • Install a lightweight OS: Raspberry Pi OS Lite (headless) reduces boot time and saves resources for wearable use.
  • Code essential features: Use Python to add time, notifications, step tracking, and Bluetooth connectivity.
  • Design a wearable case: 3D print or modify a small enclosure to house all components securely on your wrist.
  • Test and optimize: Monitor battery life, responsiveness, and comfort before finalizing your smart watch.

Introduction: Build Your Own Raspberry Pi Smart Watch

Imagine wearing a smart watch you built yourself—powered by a Raspberry Pi, customized to your needs, and packed with features like time, notifications, and even step tracking. Sounds like a dream? It’s totally possible! In this guide, we’ll show you exactly how to make a Raspberry Pi smart watch from scratch, using affordable components and beginner-friendly code.

Whether you’re a hobbyist, a student, or a tech enthusiast looking for a fun weekend project, this DIY smart watch build is both educational and rewarding. You’ll gain hands-on experience with hardware assembly, Linux, Python programming, and wearable design. By the end, you’ll have a functional, stylish smart watch that runs on open-source software and reflects your personal touch.

This project is perfect for learning about microcontrollers, power management, and user interface design. Plus, it’s a great conversation starter! So grab your tools, charge your Pi, and let’s get building.

What You’ll Need: Components and Tools

Before we dive into the build, let’s gather all the necessary parts. Don’t worry—most of these are easy to find online and won’t break the bank. Here’s a complete list of what you’ll need to make your Raspberry Pi smart watch.

How to Make Raspberry Pi Smart Watch

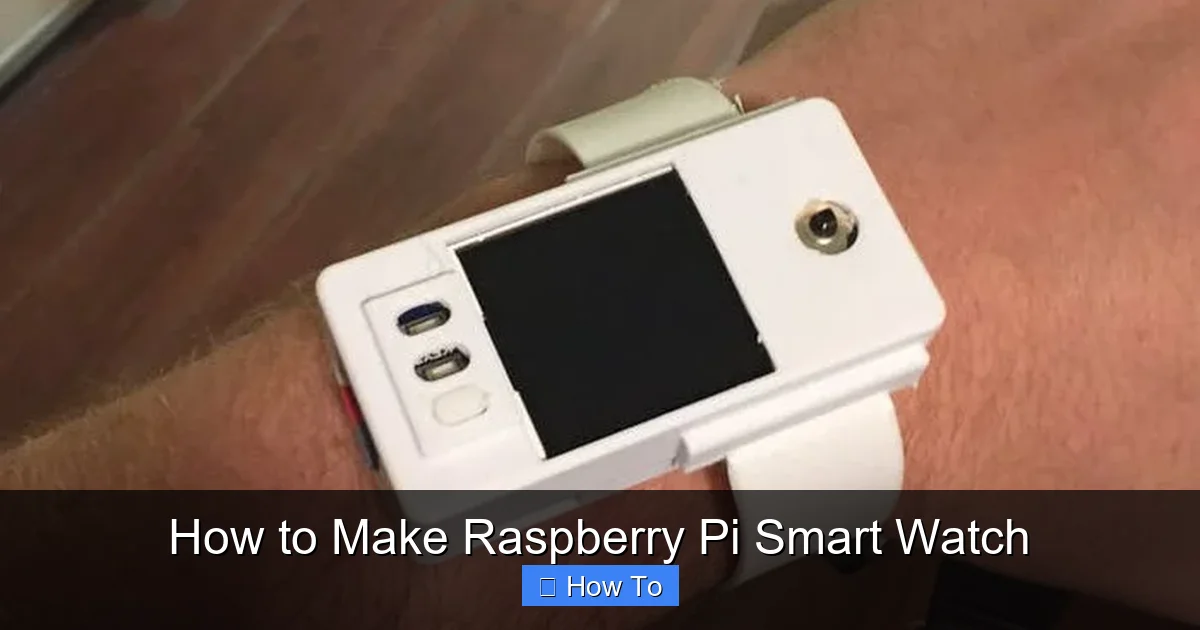

Visual guide about How to Make Raspberry Pi Smart Watch

Image source: geeky-gadgets.com

Core Components

  • Raspberry Pi Zero or Zero 2 W: These tiny boards are perfect for wearable projects. The Zero 2 W offers better performance with Wi-Fi and Bluetooth built-in.
  • MicroSD Card (8GB or larger): You’ll need this to install the operating system. A Class 10 card ensures faster read/write speeds.
  • Small Display (1.3″ to 1.8″): Choose an OLED or TFT screen with SPI or I2C interface. Popular options include the SSD1306 OLED or ST7735 TFT.
  • Lithium Polymer (LiPo) Battery: A 500mAh to 1000mAh battery provides enough power for several hours of use. Look for one with a JST connector.
  • LiPo Charging Module (e.g., TP4056): This safely charges your battery via USB and protects against overcharging.
  • Power Boost Module (e.g., Adafruit PowerBoost 500): Converts the 3.7V battery output to 5V to power the Pi.
  • Tactile Buttons (2–4): For navigation—think menu, back, select, and power.
  • Wristband or Watch Strap: You can use a standard watch band or 3D print a custom one.

Optional but Helpful

  • Accelerometer (e.g., MPU6050): Adds step counting and motion detection.
  • 3D Printer: For creating a custom case. If you don’t have one, check local makerspaces or online printing services.
  • Soldering Iron and Solder: For secure connections. If you’re new to soldering, practice on scrap components first.
  • Jumper Wires and Breadboard: Useful for prototyping before final assembly.
  • Heat Shrink Tubing or Electrical Tape: Keeps wires insulated and tidy.

Software Tools

  • Raspberry Pi Imager: To flash the OS onto your SD card.
  • Python 3: For writing the smart watch software.
  • Text Editor (e.g., Thonny or VS Code): For coding on the Pi.
  • SSH Client (e.g., PuTTY or Terminal): To remotely access your Pi during setup.

Once you’ve gathered everything, you’re ready to start building. Let’s begin with setting up the Raspberry Pi.

Step 1: Prepare the Raspberry Pi

The first step in making your Raspberry Pi smart watch is getting the Pi ready to run. We’ll install the operating system and enable essential features like Wi-Fi and SSH.

Install Raspberry Pi OS Lite

Since your smart watch doesn’t need a graphical desktop, we’ll use Raspberry Pi OS Lite—a lightweight, command-line-only version. This saves space and power.

  1. Download Raspberry Pi Imager from the official Raspberry Pi website.
  2. Insert your microSD card into your computer.
  3. Open the Imager, select Raspberry Pi OS (other), then choose Raspberry Pi OS Lite (32-bit).
  4. Select your SD card and click Write. This will erase the card and install the OS.

Enable SSH and Wi-Fi (Headless Setup)

Since you won’t have a monitor hooked up, you’ll need to enable SSH and connect to Wi-Fi before booting the Pi for the first time.

  1. After writing the OS, safely eject and reinsert the SD card. You should see a partition named boot.
  2. Create an empty file named ssh (no extension) in the boot folder. This enables SSH access.
  3. Create a file named wpa_supplicant.conf in the same folder. Open it in a text editor and add:
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
country=US

network={
    ssid="YOUR_WIFI_NAME"
    psk="YOUR_WIFI_PASSWORD"
}

Replace YOUR_WIFI_NAME and YOUR_WIFI_PASSWORD with your actual network details. Save and eject the SD card.

Boot the Pi and Connect via SSH

  1. Insert the SD card into your Raspberry Pi Zero.
  2. Connect the Pi to power using a micro USB cable.
  3. Wait 1–2 minutes for it to boot and connect to Wi-Fi.
  4. Find the Pi’s IP address using your router’s admin page or a network scanner app.
  5. Open your SSH client and connect to pi@[IP_ADDRESS]. The default password is raspberry.

Once connected, run sudo raspi-config to change the password, set the hostname (e.g., “smartwatch”), and expand the filesystem. Reboot when done.

Step 2: Connect the Display

Now it’s time to add the screen. We’ll use a 1.3″ OLED display with the SSD1306 controller, which is popular and well-supported.

Wiring the Display

Most OLED displays use I2C communication, which only requires four wires: VCC, GND, SDA, and SCL.

  • VCC → 3.3V (Pin 1 on Pi)
  • GND → GND (Pin 6)
  • SDA → GPIO 2 (SDA) (Pin 3)
  • SCL → GPIO 3 (SCL) (Pin 5)

Use jumper wires to connect the display to the Pi. Double-check the pins to avoid damage.

Enable I2C Interface

Back in your SSH session, run:

sudo raspi-config

Navigate to Interface Options → I2C → Yes to enable it. Reboot the Pi.

Test the Display

Install the necessary Python library:

sudo apt update
sudo apt install python3-pip
pip3 install adafruit-circuitpython-ssd1306

Now, create a test script:

nano test_display.py

Paste this code:

import board
import digitalio
import adafruit_ssd1306

# Define the I2C interface
i2c = board.I2C()
oled = adafruit_ssd1306.SSD1306_I2C(128, 64, i2c)

# Clear the display
oled.fill(0)
oled.show()

# Display text
oled.text("Hello, World!", 0, 0, 1)
oled.show()

Run it with:

python3 test_display.py

If you see “Hello, World!” on the screen, you’re good to go! If not, double-check your wiring and I2C address (use i2cdetect -y 1 to verify).

Step 3: Add Input Buttons

Your smart watch needs buttons to navigate menus and select options. We’ll connect four tactile buttons for up, down, select, and back.

Wiring the Buttons

Each button connects between a GPIO pin and ground. Use internal pull-up resistors to simplify wiring.

  • Up Button → GPIO 17 (Pin 11)
  • Down Button → GPIO 27 (Pin 13)
  • Select Button → GPIO 22 (Pin 15)
  • Back Button → GPIO 23 (Pin 16)

Connect one side of each button to the GPIO pin and the other to GND. No external resistors needed—Python will handle pull-ups.

Test Button Input

Create a test script:

nano test_buttons.py

Add this code:

import RPi.GPIO as GPIO

import time


# Set up GPIO

GPIO.setmode(GPIO.BCM)

buttons = [17, 27, 22, 23]

for btn in buttons:

    GPIO.setup(btn, GPIO.IN, pull_up_down=GPIO.PUD_UP)


try:

    while True:

        for i, btn in enumerate(buttons):

            if GPIO.input(btn)
