This guide walks you through how to make a smart watch at home using beginner-friendly electronics and open-source software. You’ll learn to assemble, program, and customize your own wearable device with practical tips and troubleshooting advice.

Key Takeaways

  • Choose the right microcontroller: Boards like Arduino Nano or ESP32 are ideal for beginners due to their compact size and built-in Wi-Fi/Bluetooth.
  • Use a compatible display: OLED screens (0.96” or 1.3”) offer clear visuals and low power consumption, perfect for wearable projects.
  • Power with a rechargeable battery: A 3.7V lithium polymer (LiPo) battery ensures long runtime and can be recharged via USB or wireless modules.
  • Program with Arduino IDE: This free software lets you upload custom code to control time, sensors, and notifications.
  • Design a wearable case: 3D printing or laser-cut acrylic allows you to create a custom, comfortable housing for your smart watch.
  • Add sensors for functionality: Include heart rate, accelerometer, or temperature sensors to expand your watch’s capabilities.
  • Test and iterate: Always prototype on a breadboard first, then refine your design for durability and usability.

Introduction: Build Your Own Smart Watch at Home

Have you ever wanted to wear a device you built yourself? Creating a smart watch at home is not only possible—it’s a fun and educational project that blends electronics, coding, and design. Whether you’re a hobbyist, student, or tech enthusiast, this guide will show you exactly how to make a smart watch at home using affordable components and clear, step-by-step instructions.

In this comprehensive tutorial, you’ll learn how to assemble a fully functional smart watch that displays time, date, and even connects to your phone for notifications. We’ll cover everything from selecting the right parts to programming the software and building a custom case. No prior experience is required—just curiosity and a willingness to learn. By the end, you’ll have a wearable gadget that’s uniquely yours, and you’ll gain valuable skills in electronics and coding.

What You’ll Need: Tools and Components

Before diving into the build, let’s gather all the necessary tools and components. Most items are widely available online or at local electronics stores. Here’s a complete list to get you started:

How to Make a Smart Watch at Home

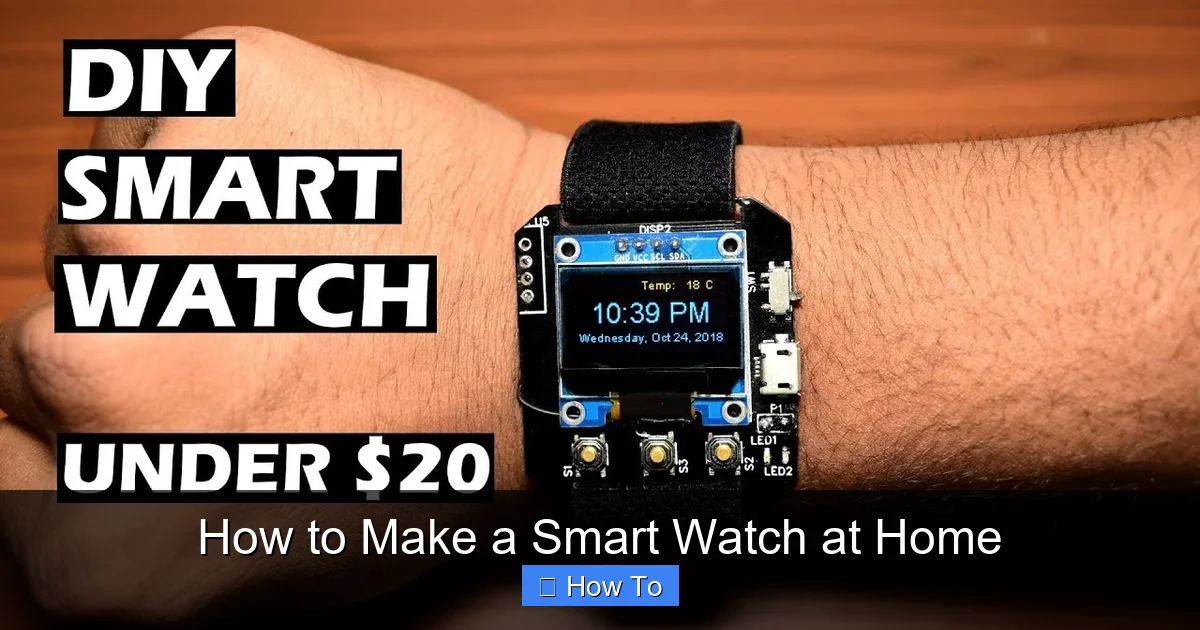

Visual guide about How to Make a Smart Watch at Home

Image source: i.ytimg.com

Essential Components

  • Microcontroller: ESP32 or Arduino Nano 33 IoT (recommended for built-in Wi-Fi/Bluetooth)
  • Display: 0.96” or 1.3” OLED screen (I2C interface preferred)
  • Battery: 3.7V 500mAh LiPo battery (or higher capacity for longer life)
  • Charging Module: TP4056 LiPo charger with protection circuit
  • Push Buttons: 2–4 tactile switches for navigation
  • Strap: Silicone or fabric watch strap (adjustable length)
  • Wires: Jumper wires (male-to-female and male-to-male)
  • Breadboard (for prototyping): Helps test connections before soldering

Optional Add-Ons

  • Heart Rate Sensor: MAX30102 for fitness tracking
  • Accelerometer: MPU6050 for step counting and motion detection
  • Temperature Sensor: DS18B20 for ambient temperature readings
  • Vibration Motor: For silent alerts and notifications
  • 3D Printer or Laser Cutter: For custom casing (or use a pre-made enclosure)

Tools Required

  • Soldering iron and solder
  • Wire strippers and cutters
  • Multimeter (for testing connections)
  • Hot glue gun (for securing components)
  • Computer with USB cable (for programming)

Pro Tip: Start with a basic version using just the microcontroller, display, and battery. Once that works, you can add sensors and features later.

Step 1: Choose Your Microcontroller

The microcontroller is the brain of your smart watch. It processes inputs, runs code, and controls all connected components. For a home-built smart watch, you want something small, powerful, and wireless-capable.

Why ESP32 Is Ideal

The ESP32 is our top recommendation. It’s compact, energy-efficient, and includes built-in Wi-Fi and Bluetooth—perfect for syncing with your phone or receiving notifications. It also has plenty of GPIO pins for connecting sensors and buttons.

Alternatively, the Arduino Nano 33 IoT is a great choice if you prefer the Arduino ecosystem. It’s slightly larger but easier for beginners to program.

How to Set Up Your Microcontroller

  1. Install the Arduino IDE on your computer (free download from arduino.cc).
  2. Add ESP32 board support: Go to File > Preferences, paste this URL in the “Additional Boards Manager URLs” field: https://dl.espressif.com/dl/package_esp32_index.json
  3. Go to Tools > Board > Boards Manager, search for “ESP32”, and install the package.
  4. Select your board: Tools > Board > ESP32 Dev Module
  5. Connect your ESP32 to your computer via USB and select the correct port under Tools > Port.

Note: If using an Arduino Nano, you may need a separate USB-to-Serial adapter for programming.

Step 2: Connect the OLED Display

The display is what makes your smart watch “smart.” An OLED screen provides sharp contrast, wide viewing angles, and low power usage—ideal for a wearable device.

Wiring the Display

Most OLED displays use the I2C communication protocol, which requires only four wires:

  • VCC → 3.3V on ESP32
  • GND → GND
  • SCL → GPIO 22 (or SCL pin)
  • SDA → GPIO 21 (or SDA pin)

Use a breadboard to test the connection first. Once confirmed, solder the wires for a permanent setup.

Install Display Library

To control the OLED, you’ll need a library. In Arduino IDE:

  1. Go to Sketch > Include Library > Manage Libraries
  2. Search for “Adafruit SSD1306” and install it
  3. Also install “Adafruit GFX Library” (a dependency)

Test the Display

Upload this simple test code to display “Hello, World!”:

#include
#include
#include

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println("Hello, World!");
  display.display();
}

void loop() {}

If the text appears, your display is working!

Step 3: Power Your Smart Watch

A reliable power source is crucial. Your smart watch needs a battery that’s small, lightweight, and rechargeable.

Choosing the Right Battery

A 3.7V lithium polymer (LiPo) battery is the best option. For a compact watch, a 500mAh battery provides 6–10 hours of runtime. For longer use, consider 800mAh or 1000mAh.

Add a Charging Circuit

Never connect a LiPo battery directly to your microcontroller. Use a TP4056 charging module to safely charge the battery via USB and protect against overcharging.

  • Battery + → TP4056 B+
  • Battery – → TP4056 B-
  • TP4056 OUT+ → ESP32 VIN (or 3.3V regulator input)
  • TP4056 OUT- → ESP32 GND

Important: The ESP32 can accept 5V on VIN, but if using a 3.3V regulator, ensure the output is stable.

Optional: Add a Power Switch

Insert a small slide switch between the battery and the charging module to turn the watch on/off. This helps conserve battery when not in use.

Step 4: Add Input Controls

You’ll need buttons to navigate menus, set alarms, or check sensors. Two to four tactile push buttons are sufficient.

Wiring the Buttons

Connect each button between a GPIO pin and ground. Use internal pull-up resistors in code to avoid extra components.

  • Button 1 → GPIO 13
  • Button 2 → GPIO 12
  • Button 3 → GPIO 14
  • Button 4 → GPIO 27

In code, set the pins as INPUT_PULLUP and detect when they go LOW (pressed).

Example Button Code

const int buttonPin = 13;

int buttonState = 0;


void setup() {

  pinMode(buttonPin, INPUT_PULLUP);

  Serial.begin(115200);

}


void loop() {

  buttonState = digitalRead(buttonPin);

  if (buttonState
