Transform your classic mechanical watch into a modern smart watch with this detailed DIY guide. You’ll learn how to integrate smart features like notifications, fitness tracking, and Bluetooth connectivity—without losing the timeless charm of your timepiece.
Key Takeaways
- Preserve the original design: Upgrade your mechanical watch with smart tech while keeping its classic look and feel.
- Use modular smart modules: Choose compact, low-power smart modules designed for watch integration to avoid major modifications.
- Ensure compatibility: Match the module size, power needs, and interface with your watch’s case and movement.
- Prioritize battery life: Opt for energy-efficient components and consider a secondary rechargeable battery to extend usage.
- Test before final assembly: Always prototype and test all functions before sealing the watch to avoid irreversible damage.
- Maintain water resistance: Re-seal the case properly after installation to protect internal components from moisture.
- Customize with apps: Pair your upgraded watch with a smartphone app to personalize notifications, watch faces, and health tracking.
How to Make a Mechanical Watch into a Smart Watch
Imagine wearing a vintage mechanical watch that also vibrates when you get a text, tracks your steps, and shows the weather—all while keeping its elegant, handcrafted charm. Sounds like science fiction? It’s not. With a little creativity, the right tools, and some basic electronics know-how, you can turn your mechanical watch into a smart watch. This guide will walk you through the entire process, from planning and sourcing components to final assembly and troubleshooting.
We’ll focus on a hybrid approach—enhancing your existing mechanical watch with smart features without replacing its core movement. This way, you keep the soul of the timepiece intact while adding modern functionality. Whether you’re a watch enthusiast, a DIY electronics hobbyist, or just love unique gadgets, this project is both rewarding and surprisingly achievable.
Why Upgrade a Mechanical Watch?
Mechanical watches are timeless. They’re crafted with precision, often passed down through generations, and carry a sense of heritage that digital watches can’t replicate. But let’s face it—today’s smart watches offer convenience: fitness tracking, notifications, GPS, and more. Instead of choosing between tradition and technology, why not have both?

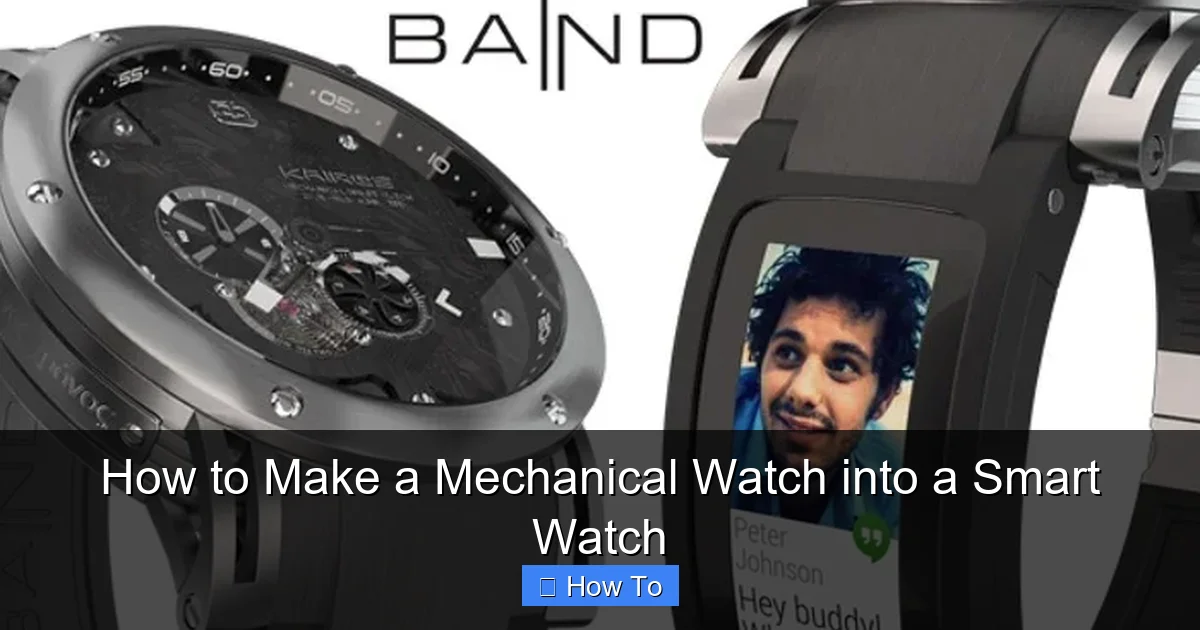

Visual guide about How to Make a Mechanical Watch into a Smart Watch
Image source: geeky-gadgets.com
By converting your mechanical watch into a smart watch, you get the best of both worlds. You preserve the craftsmanship and aesthetic of a mechanical movement while adding practical smart features. Plus, it’s a fun and educational project that teaches you about watchmaking, electronics, and problem-solving.
What You’ll Need
Before diving in, gather the right tools and components. This isn’t a simple swap—it requires careful planning and precision. Here’s a checklist of essentials:
Tools
- Watchmaker’s screwdrivers (set of precision drivers)
- Case opener (for snap-back or screw-down cases)
- Tweezers (non-magnetic, anti-static)
- Magnifying loupe or microscope
- Soldering iron (fine tip, temperature-controlled)
- Multimeter (for testing circuits)
- Small drill or Dremel (optional, for modifications)
- Anti-static mat and wrist strap
Components
- Smart module: A compact, low-power Bluetooth module with sensors (e.g., heart rate, accelerometer). Look for modules like the Nordic nRF52 series or pre-built smart watch cores (e.g., from Adafruit or Seeed Studio).
- Battery: A small rechargeable lithium-polymer (Li-Po) battery (100–200mAh). Ensure it fits inside the case.
- Charging circuit: A tiny USB or magnetic charging module (e.g., TP4056-based).
- Vibration motor: For haptic feedback (notifications).
- Display (optional): A small OLED or e-paper screen if you want visual feedback (e.g., time, notifications).
- Wires and connectors: Ultra-thin, flexible wires (30 AWG or smaller).
- Adhesive: Watch-safe epoxy or double-sided tape for securing components.
- Sealant: Watch gasket grease and replacement gaskets to maintain water resistance.
Software & Apps
- Arduino IDE or PlatformIO (for programming the module)
- Bluetooth app (e.g., LightBlue, nRF Connect) for testing
- Custom smartphone app (optional, for advanced features)
Step 1: Choose the Right Mechanical Watch
Not all mechanical watches are suitable for this upgrade. You need a model that offers enough internal space and a case that can be safely opened and resealed. Here’s what to look for:
Case Size and Style
A larger case (40mm or more) gives you more room for electronics. Avoid ultra-thin dress watches—they often lack space. A dive watch or field watch with a screw-down case back is ideal because it’s designed to be opened and resealed.
Movement Type
Stick with a manual-wind or automatic movement that doesn’t rely on a battery. Quartz movements are electronic and may interfere with your smart module. Also, ensure the movement is robust—some vintage movements are too delicate for modifications.
Case Material
Stainless steel or titanium cases are best. Avoid gold-plated or fragile materials that can scratch or crack during disassembly.
Example Watch
The Seiko SKX007 is a popular choice among DIYers. It has a large case, a sturdy automatic movement, and a screw-down case back. Plus, replacement parts and tutorials are widely available.
Step 2: Plan the Integration
Before touching any tools, sketch out your design. Decide which smart features you want and how they’ll fit inside the watch.
Smart Features to Include
- Notifications: Vibrate when you receive calls, texts, or app alerts.
- Fitness tracking: Count steps, monitor heart rate (if sensors are added).
- Time sync: Automatically adjust time via Bluetooth.
- Find my phone: Trigger a sound on your phone from the watch.
- Custom watch faces: Display data on a small screen (if using a display).
Placement Strategy
Map out where each component will go:
- Smart module: Center or side of the case, away from the balance wheel.
- Battery: Under the dial or beside the movement.
- Vibration motor: Near the case back for better haptic feedback.
- Charging port: On the side or crown (requires drilling—proceed with caution).
Use 3D modeling software (like Tinkercad) or paper sketches to visualize the layout. Measure everything twice—space is tight!
Step 3: Disassemble the Watch
Now it’s time to open your watch. Work slowly and methodically. One wrong move can damage the movement or scratch the case.
Remove the Case Back
Use the appropriate case opener. For screw-down backs, turn counterclockwise with a case wrench. For snap-backs, gently pry with a knife or opener tool. Place the watch on a soft cloth to prevent scratches.
Extract the Movement
Carefully lift out the movement using tweezers. Note the position of the crown, stem, and any screws. Take photos at each step for reassembly reference.
Remove the Dial and Hands (Optional)
If you plan to install a display or sensors under the dial, you may need to remove the hands and dial. Use a hand puller tool to avoid bending the hands. Store them safely.
Clean the Case
Use a soft brush and isopropyl alcohol to clean dust and debris from the case interior. Let it dry completely.
Step 4: Install the Smart Module
This is the core of your upgrade. The smart module will handle Bluetooth, sensors, and communication with your phone.
Choose a Module
For beginners, a pre-built module like the Adafruit Feather nRF52840 is ideal. It’s small, has built-in Bluetooth 5.0, and supports Arduino programming. It also has GPIO pins for connecting sensors and motors.
Solder Connections
Connect the module to the battery, motor, and charging circuit:
- Battery → Module: Solder the positive and negative leads to the VCC and GND pins.
- Vibration motor → Module: Connect to a GPIO pin (e.g., pin D5) via a transistor for control.
- Charging circuit → Battery: Solder the TP4056 module between the battery and a charging port.
Use heat-shrink tubing to insulate connections. Keep wires short and tidy to save space.
Secure the Module
Use a small dab of epoxy or double-sided tape to fix the module to the case wall. Avoid covering ventilation holes or sensors. Ensure it doesn’t interfere with the movement.
Step 5: Add the Battery and Charging System
Power is critical. Your smart features won’t work without a reliable battery.
Select the Right Battery
Choose a thin Li-Po battery (e.g., 3.7V, 150mAh). Measure the available space—common sizes are 20mm x 15mm x 3mm. Avoid overcharging; use a protection circuit.
Install the Charging Circuit
The TP4056 module handles safe charging. Solder it to the battery and connect a micro-USB or magnetic charging port. If drilling a hole for the port, use a 3mm bit and deburr the edges.
Test the Power System
Before final assembly, test the battery and charging:
- Charge the battery fully.
- Measure voltage with a multimeter (should be ~4.2V when full).
- Check if the module powers on.
Step 6: Integrate Haptic Feedback
Notifications need a way to alert you. A tiny vibration motor does the job.
Choose a Motor
Use a 3mm or 5mm flat vibration motor (e.g., from a old phone). These are quiet and efficient.
Mount the Motor
Attach it to the inside of the case back using epoxy. This ensures vibrations transfer directly to your wrist. Connect it to the smart module via a transistor to control power.
Program the Alerts
In your code, set the motor to vibrate for different durations:
- Short pulse: Text message
- Double pulse: Phone call
- Long pulse: Low battery
Step 7: Optional – Add a Display
If you want visual feedback, install a small OLED or e-paper screen.
Choose a Display
A 0.96-inch OLED (128×64 pixels) works well. It’s bright, low-power, and easy to program.
Mount Under the Dial
Cut a small window in the dial or use a transparent dial. Secure the screen with adhesive. Connect it to the module via I2C or SPI.
Program the Interface
Use libraries like Adafruit_SSD1306 to display time, notifications, or health data. Keep the UI simple—small screens have limited space.
Step 8: Reassemble the Watch
Once everything is tested, it’s time to put the watch back together.
Reinstall the Movement
Carefully place the movement back into the case. Reattach the crown and stem. Ensure the hands move freely.
Replace the Dial and Hands (if removed)
Use a hand press tool to reattach the hands. Align them at 12:00 for accuracy.
Seal the Case
Apply watch gasket grease to the case back O-ring. Screw or snap the back into place. Use a case press if needed.
Test Water Resistance
If your watch was water-resistant, test it in a pressure chamber or at a watchmaker. Never skip this step—moisture can ruin electronics.
Step 9: Program and Pair the Watch
Your hardware is ready—now it’s time to code.
Write the Firmware
Use Arduino IDE to program the module. Example code might include:
- Bluetooth pairing with your phone
- Reading sensor data
- Controlling the motor and display
Upload the code via USB or SWD programmer.
Pair with Your Phone
Use a Bluetooth app to connect. Test notifications, step counting, and charging.
Create a Custom App (Optional)
For advanced users, build a simple app using MIT App Inventor or Flutter to send data to the watch.
Troubleshooting Common Issues
Even with careful planning, problems can arise. Here’s how to fix them:
Watch Won’t Power On
- Check battery connections.
- Test voltage with a multimeter.
- Ensure the charging circuit is working.
Bluetooth Won’t Connect
- Verify the module is in pairing mode.
- Check antenna placement (keep it away from metal).
- Update firmware.
Vibration Motor Too Weak
- Use a stronger motor.
- Mount it directly to the case back.
- Increase power in code (use PWM).
Battery Drains Quickly
- Reduce screen brightness or disable it.
- Put the module to sleep when idle.
- Use a larger battery if space allows.
Watch Loses Time
- Ensure the mechanical movement is wound or worn regularly.
- Use Bluetooth time sync to correct drift.
Safety and Maintenance Tips
Your hybrid watch is now functional, but it needs care:
- Avoid extreme temperatures: Heat can damage batteries and electronics.
- Charge regularly: Don’t let the battery fully drain.
- Clean gently: Use a soft cloth—avoid water near the charging port.
- Service annually: Have a watchmaker check the movement and seals.
Conclusion
Turning a mechanical watch into a smart watch is a bold, creative project that blends tradition with innovation. By following this guide, you’ve added modern functionality—like notifications, fitness tracking, and Bluetooth connectivity—while preserving the elegance and craftsmanship of a mechanical timepiece.
It’s not just about the tech—it’s about personalizing your watch to fit your lifestyle. Whether you’re showing it off at a dinner party or using it to track your morning run, your hybrid watch is a conversation starter and a testament to DIY ingenuity.
Remember, this project requires patience, precision, and a willingness to learn. Start small, test often, and don’t be afraid to iterate. With the right tools and mindset, you can create a truly unique smart watch that’s all your own.
