Introduction: Why Build Your Own Smart Watch?

Smart watches are no longer just luxury gadgets—they’re powerful wearable computers that track fitness, deliver notifications, and even run apps. But instead of buying a commercial model, why not create your own smart watch? Building a custom smart watch gives you full control over design, features, and functionality. Whether you’re a hobbyist, student, or tech enthusiast, this project combines electronics, coding, and creativity into one rewarding experience.

In this guide, you’ll learn how to build a fully functional smart watch from scratch. We’ll cover everything from selecting the right components to writing code and assembling the final device. No prior experience? No problem. With clear instructions, practical tips, and troubleshooting advice, you’ll be able to complete this project step by step. By the end, you’ll have a unique wearable device that reflects your personal style and technical skills.

Step 1: Plan Your Smart Watch Features

Before buying parts or writing code, decide what your smart watch should do. This planning phase ensures you don’t waste time or money on unnecessary components. Ask yourself:

How to Create You Own Smart Watch

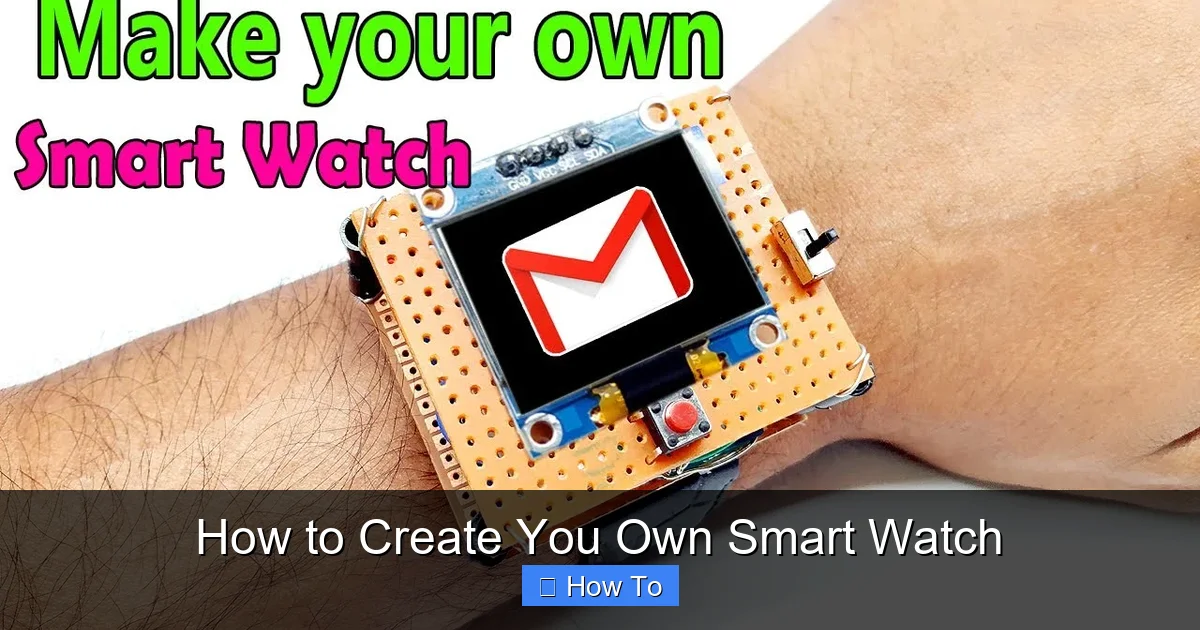

Visual guide about How to Create You Own Smart Watch

Image source: i.ytimg.com

  • Will it show the time and date?
  • Should it track steps or heart rate?
  • Do you want Bluetooth connectivity for phone notifications?
  • Will it have a touchscreen or physical buttons?
  • How long should the battery last?

For beginners, we recommend starting with core features: a digital clock, step counter, and Bluetooth sync with a smartphone. As you gain confidence, you can add more advanced functions like GPS, music control, or weather updates.

Example Feature Set for Beginners

  • Real-time clock with alarm
  • Pedometer using an accelerometer
  • Bluetooth Low Energy (BLE) for phone pairing
  • OLED display for time and notifications
  • Rechargeable battery with 12–24 hour life

Once you’ve defined your goals, move on to selecting the right hardware.

Step 2: Gather the Essential Components

Building a smart watch requires a mix of electronic components. Here’s a list of the core parts you’ll need, along with recommendations for each.

1. Microcontroller (Brain of the Watch)

The microcontroller processes data, runs code, and controls all other components. For a smart watch, you need one with built-in wireless connectivity and low power consumption.

  • ESP32: Popular choice with Wi-Fi and Bluetooth. Affordable and widely supported.
  • Arduino Nano 33 BLE: Compact, with Bluetooth and a built-in IMU (inertial measurement unit).
  • nRF52840 (used in Adafruit Feather nRF52840): Excellent for BLE and low-power applications.

Tip: The ESP32 is ideal for beginners due to its large community and extensive libraries.

2. Display Screen

The display shows time, notifications, and sensor data. Choose a small, low-power screen with good visibility.

  • 0.96” OLED (128×64 pixels): High contrast, wide viewing angle, uses I2C or SPI.
  • 1.3” TFT LCD (240×240 pixels): Color display, better for graphics, but uses more power.

Tip: OLED screens are better for battery life and readability in sunlight.

3. Sensors

Sensors add smart functionality. Start with these basics:

  • Accelerometer (e.g., MPU-6050): Tracks movement for step counting.
  • Heart Rate Sensor (e.g., MAX30102): Measures pulse using infrared light.
  • Temperature Sensor (e.g., DS18B20): Optional for environmental monitoring.

Tip: The MPU-6050 is inexpensive and easy to integrate with Arduino.

4. Power System

A reliable power system is crucial for wearability.

  • LiPo Battery (3.7V, 150–300mAh): Lightweight and rechargeable.
  • Charging Module (e.g., TP4056): Safely charges the battery via USB.
  • Boost Converter (e.g., MT3608): Steps up voltage if needed for the display.

Tip: Always use a protection circuit to prevent overcharging or short circuits.

5. Input Method

Users need a way to interact with the watch.

  • Tactile Push Buttons: Simple and reliable for menu navigation.
  • Capacitive Touch Sensor: More modern, but requires careful calibration.
  • Rotary Encoder: Allows scrolling through menus with a twist.

Tip: Two or three buttons are enough for basic navigation.

6. Enclosure and Strap

The case protects components and makes the watch wearable.

  • 3D-Printed Case: Customizable and lightweight. Use PLA or ABS filament.
  • Pre-Made Watch Case: Modify a small digital watch case for a quick solution.
  • Watch Strap: Use a standard 20mm or 22mm band for comfort.

Tip: Design the case with openings for the screen, buttons, and charging port.

Step 3: Design the Circuit and Schematic

Now that you have your components, it’s time to connect them. Start by drawing a circuit diagram showing how each part links to the microcontroller.

Create a Wiring Plan

Use free tools like Fritzing or EasyEDA to design your schematic. Here’s a basic connection guide:

  • OLED Display: Connect SDA to GPIO 21, SCL to GPIO 22 (I2C).
  • MPU-6050: Same I2C pins (SDA, SCL), plus VCC and GND.
  • Buttons: Connect one side to GPIO pins (e.g., GPIO 14, 15), other side to GND with pull-up resistors.
  • Battery: Connect to the charging module, then to the microcontroller’s 3.3V or 5V pin.

Tip: Use a breadboard first to test connections before soldering.

Power Considerations

Most microcontrollers and sensors run on 3.3V. The ESP32, for example, has a 3.3V regulator, so you can power it directly from the LiPo battery (3.7V). However, if your display requires 5V, use a boost converter.

Calculate total current draw to estimate battery life. For example:

  • ESP32: ~80mA active, ~5mA sleep
  • OLED: ~20mA
  • MPU-6050: ~3mA

Total: ~100mA. A 200mAh battery would last about 2 hours active, or 2+ days in sleep mode with smart power management.

Step 4: Assemble the Hardware

With your circuit tested, it’s time to build the physical watch. Follow these steps carefully.

Solder the Components

Use a soldering iron to connect wires between the microcontroller, display, sensors, and battery. Keep wires short to reduce interference and save space.

  • Solder header pins to the ESP32 for easy connections.
  • Use heat shrink tubing to insulate exposed wires.
  • Double-check polarity—reversing VCC and GND can damage components.

Mount the Display and Buttons

Secure the OLED screen and buttons to the inside of the case. Use glue or small brackets. Ensure the screen is aligned and visible through the front window.

Install the Battery and Charging Module

Place the LiPo battery in a secure compartment. Connect it to the TP4056 charging module, then route a micro-USB or USB-C port to the outside of the case for charging.

Test Before Final Assembly

Power on the device and verify:

  • The display turns on and shows text.
  • Buttons respond correctly.
  • Sensors send data to the microcontroller.
  • Battery charges when plugged in.

If anything fails, recheck connections and power levels.

Step 5: Write the Firmware (Code)

The firmware is the software that runs on your smart watch. We’ll use the Arduino IDE for simplicity.

Set Up the Development Environment

Download and install the Arduino IDE from arduino.cc. Then:

  • Install the ESP32 board package via Boards Manager.
  • Install necessary libraries: Adafruit_SSD1306 (for OLED), Wire (I2C), MPU6050 (sensor).

Write the Basic Code

Start with a simple program that displays the time and reads the accelerometer.

#include
#include
#include

Adafruit_SSD1306 display(128, 64, &Wire, -1);
MPU6050 mpu;

void setup() {
  Serial.begin(115200);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0,0);
  display.println("Hello, Smart Watch!");
  display.display();

  mpu.initialize();
  if (!mpu.testConnection()) {
    display.println("MPU6050 failed");
    display.display();
  }
}

void loop() {
  int16_t ax, ay, az;
  mpu.getAcceleration(&ax, &ay, &az);

  display.clearDisplay();
  display.setCursor(0,0);
  display.print("Accel X: ");
  display.println(ax);
  display.display();

  delay(500);
}

This code displays a greeting and accelerometer data. Expand it to include a real-time clock using the RTClib library or sync time via Bluetooth.

Add Bluetooth Connectivity

Use the ESP32’s built-in BLE to connect to a smartphone. Create a simple app using MIT App Inventor or Blynk to send notifications.

  • Advertise the watch as a BLE device.
  • Create a custom service with characteristics for time, steps, and alerts.
  • Send data from the phone to update the watch display.

Tip: Use the NimBLE library for better performance and lower power usage.

Implement Power Saving

To extend battery life, put the ESP32 into deep sleep between updates.

esp_sleep_enable_timer_wakeup(10 * 1000000); // Wake every 10 seconds
esp_deep_sleep_start();

This reduces power consumption to under 10µA, dramatically improving battery life.

Step 6: Design and Print the Case

A well-designed case protects components and makes the watch wearable. Use 3D modeling software to create a custom enclosure.

Choose a Design Tool

Beginners can use Tinkercad (free, browser-based). Advanced users may prefer Fusion 360 or Blender.

Design Considerations

  • Size: Keep it under 40mm wide for comfort.
  • Openings: Include cutouts for the screen, buttons, and charging port.
  • Mounting: Add small posts or slots to secure the PCB.
  • Ventilation: Prevent overheating with small vents.

Print and Assemble

Print the case using a 3D printer. Use supports for overhangs. Once printed, sand rough edges and test-fit all components. Secure the PCB with screws or glue.

Tip: Print a prototype first to check fit before finalizing the design.

Step 7: Test, Debug, and Optimize

Testing is crucial to ensure reliability and usability.

Functional Testing

  • Does the watch keep accurate time?
  • Are button presses registered correctly?
  • Does the step counter detect movement?
  • Does Bluetooth pairing work?
  • How long does the battery last?

Troubleshooting Common Issues

  • Display not working: Check I2C address and wiring. Use an I2C scanner sketch.
  • Battery drains fast: Enable deep sleep and reduce screen brightness.
  • Buttons unresponsive: Verify pull-up resistors and GPIO settings.
  • Bluetooth not connecting: Ensure correct UUIDs and pairing mode.

Optimize Performance

  • Reduce screen refresh rate to save power.
  • Use efficient data types in code (e.g., uint8_t instead of int).
  • Minimize sensor polling frequency.

Step 8: Customize and Expand

Once your smart watch is working, add personal touches and advanced features.

Add New Sensors

  • GPS module for location tracking.
  • Humidity sensor for weather monitoring.
  • Light sensor for auto-brightness.

Create a Companion App

Build a mobile app to sync data, set alarms, or view fitness stats. Use Flutter, React Native, or native Android/iOS development.

Design a Watch Face

Create custom graphics for the display. Use tools like Watch Face Studio or code your own interface with animations.

Share Your Project

Publish your design on platforms like GitHub, Instructables, or Hackster.io. Include schematics, code, and 3D models to help others.

Conclusion: You’ve Built Your Own Smart Watch!

Congratulations! You’ve successfully created your own smart watch from scratch. This project not only gives you a unique wearable device but also deepens your understanding of electronics, programming, and design. Whether you keep it as a personal gadget or share it with the maker community, you’ve accomplished something impressive.

Remember, building a smart watch is an iterative process. Start simple, test often, and improve over time. With each version, you can add new features, refine the design, and enhance performance. The possibilities are endless—so keep experimenting, learning, and creating.
