Creating your own smart watch is a fun and rewarding project that blends electronics, coding, and design. This guide walks you through every step—from choosing components to coding the software—so you can build a functional, personalized wearable device.

Key Takeaways

  • Choose the right microcontroller: Select a board like ESP32 or Arduino Nano 33 BLE for processing power and Bluetooth connectivity.
  • Pick a compatible display: Use a small OLED or TFT screen (0.96″ to 1.3″) for clear visuals and low power use.
  • Design a compact circuit: Plan your wiring and power supply carefully to fit everything into a wearable form factor.
  • Code the firmware: Use Arduino IDE or PlatformIO to program features like time, notifications, and sensors.
  • 3D print or craft a case: Protect your components with a custom enclosure made from plastic, wood, or silicone.
  • Test and refine: Debug hardware and software issues before final assembly to ensure reliability.
  • Customize with apps: Add features like step counting, heart rate monitoring, or music control using sensors and APIs.

Introduction: Why Build Your Own Smart Watch?

Have you ever wanted a smart watch that’s truly yours—customized to your style, needs, and tech preferences? Commercial smart watches are great, but they come with limitations: high prices, limited customization, and reliance on proprietary software. By learning how to create your own smart watch, you gain full control over design, functionality, and upgrades.

This guide is perfect for hobbyists, students, and tech enthusiasts who want to dive into wearable technology. You don’t need to be an expert—just curious and willing to learn. We’ll walk you through selecting components, assembling the hardware, writing code, and putting it all together into a working smart watch.

By the end, you’ll have a unique wearable device that tells time, connects to your phone, and maybe even tracks your fitness. Plus, you’ll gain valuable skills in electronics, programming, and problem-solving. Let’s get started!

Step 1: Plan Your Smart Watch Design

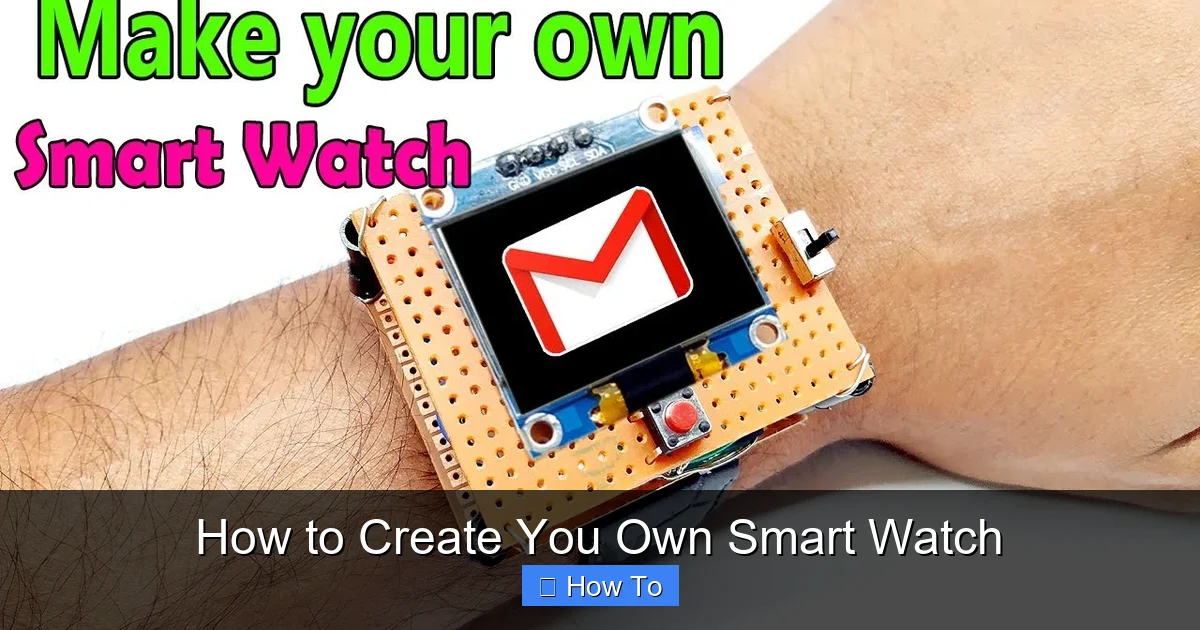

How to Create You Own Smart Watch

Visual guide about How to Create You Own Smart Watch

Image source: i.ytimg.com

Before buying parts or soldering wires, take time to plan your smart watch. A clear design prevents costly mistakes and ensures your final product works well.

Define Your Goals

Ask yourself: What do I want my smart watch to do? Common features include:

  • Displaying the time and date
  • Receiving phone notifications (calls, texts, apps)
  • Tracking steps or heart rate
  • Controlling music or taking photos remotely
  • Showing weather or calendar events

Start simple. A basic watch with time and notifications is easier to build and debug than one with advanced sensors.

Sketch a Layout

Draw a rough sketch of your watch. Include:

  • Where the screen will go
  • Button or touch controls
  • Battery placement
  • Microcontroller (main brain) location

Keep it compact—most smart watches are under 40mm wide. Use graph paper or a digital tool like Figma or Tinkercad to visualize the design.

Choose a Power Source

Your watch needs a small, rechargeable battery. Common options:

  • Lithium Polymer (LiPo): Lightweight and high capacity (e.g., 100–300mAh). Requires a charging circuit.
  • Lithium-ion (Li-ion): Slightly heavier but widely available.

A 150mAh LiPo battery can power a basic watch for 12–24 hours. Include a USB or magnetic charging port for easy recharging.

Step 2: Gather the Essential Components

Now that you have a plan, it’s time to buy the parts. Here’s a list of core components you’ll need to create your own smart watch.

Microcontroller (The Brain)

This is the central processor. Look for one with Bluetooth and low power consumption. Top choices:

  • ESP32: Affordable, powerful, built-in Wi-Fi and Bluetooth. Great for beginners.
  • Arduino Nano 33 BLE: Compact, Bluetooth-enabled, easy to program with Arduino IDE.
  • nRF52840 (used in Adafruit Feather): Excellent for wearables, low power, supports Bluetooth 5.

The ESP32 is our top pick—it’s versatile, well-documented, and widely supported.

Display Screen

You need a small, bright screen. Options:

  • OLED (0.96″ or 1.3″): High contrast, low power, easy to read in sunlight. Uses I2C or SPI communication.
  • TFT LCD (1.1″ to 1.4″): Colorful and vibrant, but uses more power. Requires more pins.

For most DIY smart watches, a 0.96″ OLED is ideal—it’s small, efficient, and affordable (under $10).

Sensors (Optional but Recommended)

Add functionality with sensors:

  • Accelerometer (e.g., MPU-6050): Tracks movement for step counting.
  • Heart Rate Sensor (e.g., MAX30102): Measures pulse using light.
  • Temperature Sensor (e.g., DS18B20): Monitors ambient or body temperature.

Start with an accelerometer—it’s simple and adds useful features.

Battery and Charging Module

As mentioned, a 150–300mAh LiPo battery is ideal. Pair it with a charging module like the TP4056, which safely charges the battery via USB and protects against overcharging.

Buttons and Connectors

You’ll need at least one button for navigation. Use tactile push buttons (6mm x 6mm). For charging, include a micro-USB or magnetic pogo pin connector.

Strap and Enclosure

You can 3D print a case using PLA or ABS plastic. Alternatively, use a pre-made watch band and modify a small plastic box. Silicone or leather straps work well for comfort.

Step 3: Assemble the Hardware

With all parts ready, it’s time to build the circuit. This step requires basic soldering and wiring skills.

Prepare Your Workspace

Set up a clean, well-lit area with:

  • Soldering iron and solder
  • Wire strippers and cutters
  • Multimeter (to test connections)
  • Helping hands or clamps

Wear safety goggles and work in a ventilated space.

Wire the Microcontroller

Follow this general wiring guide (adjust based on your board):

  • Connect the OLED’s SDA and SCL pins to the ESP32’s GPIO 21 and 22 (I2C).
  • Wire the accelerometer’s SDA/SCL to the same I2C pins.
  • Connect the battery to the charging module’s input, then the module’s output to the ESP32’s 3.3V and GND.
  • Add a button between a GPIO pin and GND (use a pull-up resistor).

Use jumper wires or solder directly for a permanent connection. Keep wires short to reduce interference.

Test Each Component

Before final assembly, test each part:

  • Upload a simple “blink” sketch to the ESP32.
  • Display “Hello” on the OLED.
  • Read accelerometer data via serial monitor.

This helps catch wiring errors early.

Step 4: Write the Firmware (Code)

Now comes the fun part—programming your smart watch. We’ll use the Arduino IDE, a free and beginner-friendly platform.

Install Required Libraries

Open Arduino IDE and install these libraries via the Library Manager:

  • Adafruit SSD1306: For OLED displays.
  • Adafruit GFX: Graphics support for the screen.
  • ESP32 BLE Arduino: Enables Bluetooth on ESP32.
  • Wire: For I2C communication.

Search and install each one.

Basic Code: Display Time

Start with a simple sketch that shows the time. Here’s a basic example:


#include
#include
#include

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.setTextSize(2);
  display.setTextColor(WHITE);
  display.setCursor(0, 0);
  display.println("Hello!");
  display.display();
}

void loop() {
  // Add time logic here
}

Upload this to your ESP32. You should see “Hello!” on the screen.

Add Bluetooth and Notifications

To receive phone notifications, use Bluetooth Low Energy (BLE). The ESP32 can act as a BLE client that connects to your phone.

  • Use apps like “BLE Monitor” or “Serial Bluetooth Terminal” to send test messages.
  • Write code to parse incoming data and display it on the OLED.

For example, when your phone sends “CALL: Mom”, the watch shows “Incoming: Mom”.

Integrate Sensors

Add code to read sensor data:

  • Use the MPU-6050 library to detect motion and count steps.
  • Display step count on the screen every 10 seconds.
  • Add a menu button to switch between time, steps, and settings.

Keep the interface simple—use icons and short text.

Step 5: Design and Build the Case

A good case protects your electronics and makes the watch wearable.

3D Print a Custom Enclosure

Use Tinkercad or Fusion 360 to design a case. Include:

  • Slots for the screen and buttons
  • Holes for charging and sensors
  • Mounting points for the PCB

Print in two parts: front and back. Use screws or snap-fits to secure them.

Alternative: Use a Pre-Made Case

If you don’t have a 3D printer, modify a small plastic box or use a watch bezel from a craft store. Drill holes for buttons and the screen.

Attach the Strap

Use watch strap adapters or glue the case to a silicone band. Ensure it’s secure and comfortable.

Step 6: Final Assembly and Testing

Now, put it all together.

Mount the Components

  • Secure the PCB inside the case with double-sided tape or screws.
  • Connect the battery and close the case.
  • Test all functions: screen, buttons, Bluetooth, sensors.

Troubleshooting Common Issues

  • Screen not working: Check I2C address and wiring. Use a multimeter to test connections.
  • Battery drains fast: Disable Wi-Fi if not needed. Use deep sleep mode when idle.
  • Bluetooth won’t connect: Ensure the ESP32 is in BLE mode. Restart both devices.
  • Buttons unresponsive: Check for loose wires or incorrect pin assignments.

Optimize Power Usage

To extend battery life:

  • Use deep sleep mode when the watch is idle.
  • Dim the screen after 10 seconds.
  • Turn off sensors when not in use.

Step 7: Customize and Upgrade

Once your smart watch works, add cool features:

  • Weather updates via Wi-Fi
  • Music control (play/pause from your phone)
  • Custom watch faces
  • Vibration motor for alerts

You can even create a companion app using MIT App Inventor or Blynk.

Conclusion: You Built a Smart Watch!

Congratulations! You’ve successfully learned how to create your own smart watch from scratch. This project teaches valuable skills in electronics, coding, and design—and gives you a unique gadget to show off.

Remember, the first version doesn’t have to be perfect. Iterate, improve, and keep experimenting. Maybe next time, you’ll add GPS or a touchscreen. The possibilities are endless.

Share your creation online, join maker communities, and inspire others to build their own. Happy making!
