This guide walks you through how to connect smart watches to GSM modules for standalone connectivity. You’ll learn about compatible hardware, wiring, software setup, and troubleshooting common issues—perfect for developers and hobbyists building smart wearable systems.

Key Takeaways

  • Understand Compatibility: Not all smart watches support direct GSM module integration; check for UART, I2C, or SPI interfaces.
  • Choose the Right GSM Module: Modules like SIM800L, SIM900, or A7670C are popular for low-power, compact wearable projects.
  • Power Management is Critical: GSM modules draw high current during transmission—use a stable 3.7V–4.2V power source with sufficient amperage.
  • Use AT Commands for Communication: Most GSM modules respond to AT commands sent via serial communication from the smart watch’s microcontroller.
  • Antenna Placement Matters: A poor antenna connection leads to weak signal; use a proper PCB trace or external antenna with correct impedance.
  • Test in Stages: Begin with basic power and serial communication before attempting SMS or voice calls.
  • Secure Your Setup: Always use a valid SIM card with an active plan and ensure proper grounding to avoid damage.

How to Connect Smart Watches to GSM Module: A Complete Step-by-Step Guide

Have you ever wanted your smart watch to make calls or send texts without relying on a paired smartphone? By connecting a smart watch to a GSM module, you can give it standalone cellular capabilities—perfect for fitness trackers, emergency wearables, or custom IoT devices. This guide will show you exactly how to connect smart watches to GSM modules, whether you’re a hobbyist, developer, or tech enthusiast.

In this comprehensive tutorial, we’ll cover everything from selecting the right components to wiring, programming, and troubleshooting. You’ll learn how to integrate a GSM module like the SIM800L or A7670C with a smart watch’s microcontroller, enabling features like SMS, voice calls, and even basic internet access. No prior experience? No problem—we’ll keep things simple, practical, and beginner-friendly.

Why Connect a Smart Watch to a GSM Module?

Most consumer smart watches rely on Bluetooth or Wi-Fi to connect to a smartphone for internet and calling features. But what if you want your watch to work independently? That’s where a GSM module comes in. By adding a GSM (Global System for Mobile Communications) module, your smart watch can connect directly to cellular networks, allowing it to:

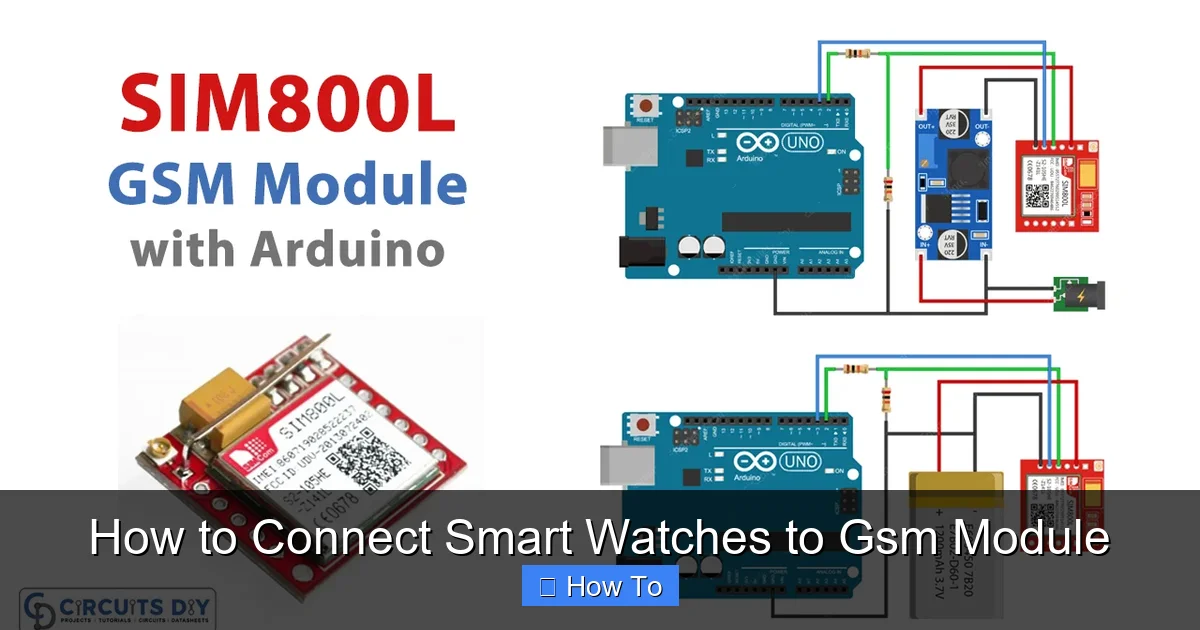

How to Connect Smart Watches to Gsm Module

Visual guide about How to Connect Smart Watches to Gsm Module

Image source: circuits-diy.com

  • Send and receive SMS messages
  • Make and receive voice calls
  • Access mobile data (GPRS/EDGE)
  • Send GPS location updates via text
  • Operate in remote areas without Wi-Fi

This is especially useful for:

  • Kids’ safety watches
  • Elderly monitoring devices
  • Outdoor adventure trackers
  • DIY smart wearables
  • Industrial IoT applications

With the right setup, your smart watch becomes a true standalone communication device.

What You’ll Need

Before we dive into the connection process, let’s gather the essential components. The exact parts may vary depending on your smart watch model and project goals, but here’s a standard list:

1. Smart Watch with Programmable Microcontroller

Not all smart watches allow hardware modifications. You’ll need a watch with accessible GPIO pins and a programmable microcontroller (like an ESP32, Arduino-compatible chip, or Nordic nRF52). Popular options include:

  • Custom-built smart watches using ESP32 or Arduino Nano
  • Development boards like the LilyGo T-Watch or PineTime
  • Open-source platforms such as AsteroidOS or Watchy

Tip: Avoid sealed commercial watches like Apple Watch or Galaxy Watch—they’re not designed for hardware hacking.

2. GSM Module

The GSM module is the heart of your cellular connection. Choose one that’s compact, low-power, and compatible with your microcontroller. Here are the most popular options:

  • SIM800L: Affordable, widely used, supports GSM/GPRS. Draws ~2A peak current.

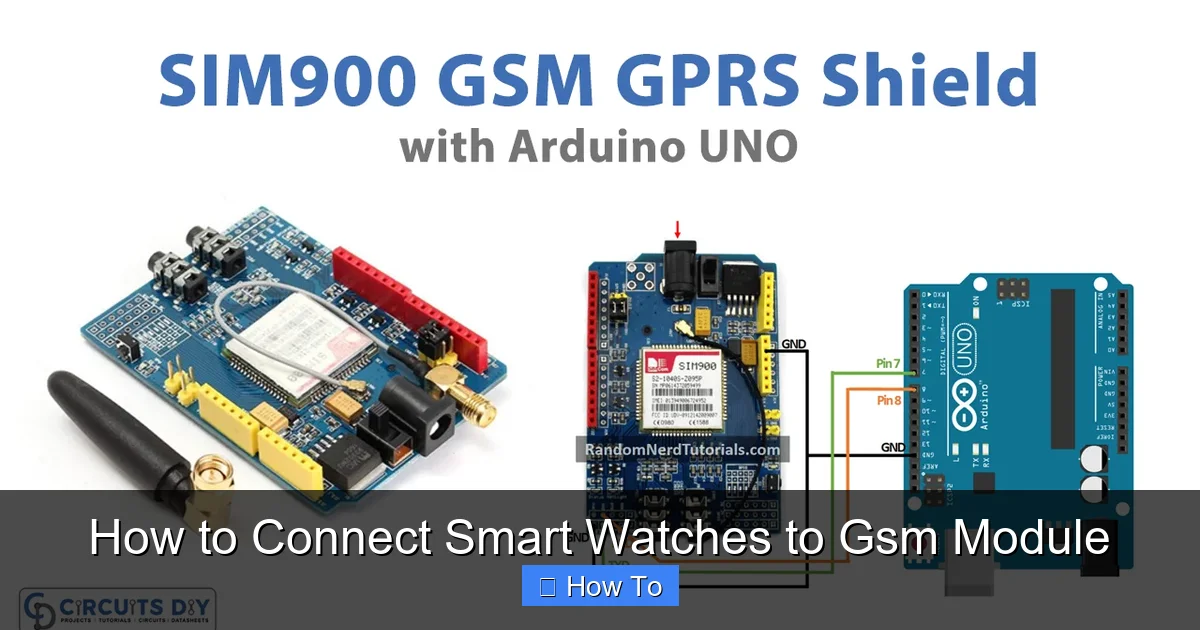

  • SIM900: Slightly larger but more robust. Good for prototyping.
  • A7670C: 4G LTE-capable, smaller footprint, ideal for modern wearables.
  • Quectel M66: Ultra-compact, low power, great for space-constrained designs.

Note: Ensure your module supports the frequency bands used in your country (e.g., 850/900/1800/1900 MHz).

3. SIM Card

You’ll need a standard or micro-SIM card with an active cellular plan. Prepaid SIMs work well for testing. Make sure it’s unlocked and supports data if you plan to use GPRS.

4. Power Supply

GSM modules require stable power—especially during transmission. A lithium-ion battery (3.7V) with a capacity of at least 500mAh is recommended. Use a boost converter if your watch runs on lower voltage.

5. Level Shifter (Optional but Recommended)

Many GSM modules use 2.8V logic levels, while microcontrollers like ESP32 use 3.3V. A bidirectional logic level shifter (e.g., TXB0104) prevents damage from voltage mismatches.

6. Antenna

Every GSM module needs an antenna. Most come with a U.FL or IPEX connector. Use a 2.4GHz or 4G antenna with proper impedance (50 ohms). Poor antenna placement = weak signal.

7. Breadboard and Jumper Wires (for Prototyping)

Use these for initial testing before soldering. Female-to-female jumper wires are ideal for connecting modules to development boards.

8. USB-to-Serial Adapter (for Debugging)

Helps you send AT commands directly to the GSM module during setup.

Step 1: Understand the Communication Interface

GSM modules communicate with microcontrollers using serial communication—typically UART (Universal Asynchronous Receiver-Transmitter). This means data is sent one bit at a time over two wires: TX (transmit) and RX (receive).

Your smart watch’s microcontroller must have a UART interface. Most do, but check your board’s pinout. For example:

  • ESP32: Multiple UART ports (UART0, UART1, UART2)
  • Arduino Nano: One hardware UART (pins 0 and 1)
  • nRF52: UART via SoftwareSerial or hardware pins

Important: The TX pin of the GSM module connects to the RX pin of the microcontroller, and vice versa. Cross them!

Logic Level Matching

If your microcontroller runs at 3.3V and the GSM module at 2.8V, you risk damaging the module. Use a logic level shifter to convert voltages safely. Alternatively, some modules (like the SIM800L) tolerate 3.3V input on RX, but it’s safer to use a shifter.

Step 2: Wiring the GSM Module to the Smart Watch

Now let’s connect the hardware. We’ll use the SIM800L as an example, but the principles apply to most modules.

Pin Connections

Here’s how to wire a SIM800L to an ESP32-based smart watch:

  • VCC → 3.7V–4.2V Power Source: Connect to a lithium battery or regulated 4V supply. Do NOT use 5V—it can fry the module.
  • GND → Ground: Common ground between watch and module.
  • TX (GSM) → RX (Microcontroller): Data from GSM to watch.
  • RX (GSM) → TX (Microcontroller): Data from watch to GSM.
  • RESET → Optional GPIO: Can be tied to a pin for software reset.
  • NETLIGHT → Optional LED: Blinks to indicate network status.

Tip: Use thick wires for power lines to reduce voltage drop during transmission bursts.

Antenna Installation

Screw or solder the antenna to the GSM module’s U.FL connector. Route it away from noise sources (like motors or displays). For best performance, place the antenna on the edge of the watch casing.

Power Considerations

GSM modules can draw up to 2A when transmitting. A small battery may cause voltage drops, leading to resets. Use a capacitor (1000µF, 6.3V) across VCC and GND to stabilize power.

Step 3: Insert the SIM Card

Power off the system before inserting the SIM card. Use a SIM adapter if needed. Ensure the SIM is properly seated in the module’s tray. Most modules have a SIM holder on the underside.

Note: Some modules require a PIN. You can disable it via AT commands later, but for now, use a SIM without a PIN for easier testing.

Step 4: Power On and Test Basic Communication

Before writing code, verify that the GSM module powers on and responds.

Check Power Indicators

When powered, the SIM800L’s power LED should light up. The NETLIGHT LED will blink slowly (every 3 seconds) when searching for a network, and faster (every 1 second) when connected.

Test with AT Commands

Use a USB-to-Serial adapter to send AT commands directly:

  1. Connect the GSM module’s TX/RX to the adapter.
  2. Open a serial monitor (e.g., Arduino IDE, PuTTY) at 9600 baud.
  3. Send AT and press Enter.
  4. If the module responds with OK, communication is working.

Try these basic commands:

  • AT+CSQ – Check signal strength (0–31, higher is better)
  • AT+COPS? – Check network operator
  • AT+CCID – Read SIM card ID

If you get no response, double-check wiring, power, and baud rate.

Step 5: Program the Smart Watch

Now it’s time to write code to control the GSM module from your smart watch. We’ll use Arduino IDE with an ESP32 as an example.

Install Required Libraries

Use the SoftwareSerial library if your hardware UART is occupied. For ESP32, you can use HardwareSerial.

#include <HardwareSerial.h>
HardwareSerial GSM(1); // Use UART1

Initialize Serial Communication

In setup():

void setup() {
  Serial.begin(115200); // Debug serial
  GSM.begin(9600, SERIAL_8N1, 16, 17); // RX=16, TX=17
  delay(1000);
  GSM.println("AT"); // Test command
}

Send AT Commands from Code

In loop(), send commands and read responses:

void loop() {
  if (GSM.available()) {
    String response = GSM.readString();
    Serial.println("GSM: " + response);
  }
  delay(1000);
  GSM.println("AT+CSQ"); // Check signal
}

This will print the signal strength to the serial monitor.

Send an SMS

To send a text message:

GSM.println("AT+CMGF=1"); // Set text mode
delay(1000);
GSM.println("AT+CMGS=\"+1234567890\""); // Replace with recipient number
delay(1000);
GSM.print("Hello from my smart watch!"); // Message
GSM.write(26); // Ctrl+Z to send

Wait for +CMGS: response to confirm delivery.

Make a Call

To dial a number:

GSM.println("ATD+1234567890;"); // Dial

Use ATH to hang up.

Step 6: Optimize for Low Power

GSM modules are power-hungry. To extend battery life:

  • Use AT+CSCLK=1 to enable sleep mode.
  • Turn off the module when not in use with a MOSFET switch.
  • Reduce transmission frequency (e.g., send location every 10 minutes, not every second).
  • Use a low-power microcontroller (e.g., nRF52) for better efficiency.

Step 7: Enclosure and Final Assembly

Once everything works, secure the components inside the watch case. Use non-conductive glue or 3D-printed mounts. Ensure the antenna has clearance and isn’t blocked by metal.

Test the final assembly in different locations to verify signal strength.

Troubleshooting Common Issues

No Response to AT Commands

  • Check TX/RX connections (crossed?)
  • Verify baud rate (try 9600, 19200, 57600)
  • Ensure stable power supply
  • Test with USB-to-Serial adapter first

Module Resets Frequently

  • Insufficient power—use a larger battery or capacitor
  • Voltage drop during transmission
  • Check for loose connections

Weak or No Signal

  • Antenna not connected or poorly placed
  • SIM card not activated
  • Outside coverage area
  • Try AT+COPS=? to scan for networks

SMS Not Sending

  • Incorrect phone number format (include country code)
  • Message too long (limit to 160 characters)
  • Network congestion—retry later

Call Drops Immediately

  • Insufficient signal strength
  • Incorrect dial format (use ATD+number;)
  • SIM plan doesn’t support voice

Advanced Tips and Ideas

  • Add GPS: Combine GSM with a GPS module for location tracking.
  • Use MQTT over GPRS: Send sensor data to the cloud.
  • Implement Fall Detection: Trigger an SMS alert if the watch detects a fall.
  • Add a Microphone and Speaker: Enable voice calls (requires audio codec support).
  • OTA Updates: Update firmware wirelessly via GPRS.

Conclusion

Connecting a smart watch to a GSM module opens up exciting possibilities for standalone wearable technology. While it requires careful attention to power, wiring, and software, the result is a powerful device that can communicate independently over cellular networks.

By following this guide, you’ve learned how to connect smart watches to GSM modules—from selecting components and wiring to programming and troubleshooting. Whether you’re building a safety watch for kids or a custom IoT tracker, this knowledge gives you the foundation to create innovative, connected wearables.

Remember to test in stages, prioritize power stability, and always use proper safety practices when working with batteries and electronics. With patience and practice, you’ll have a fully functional GSM-enabled smart watch in no time.
