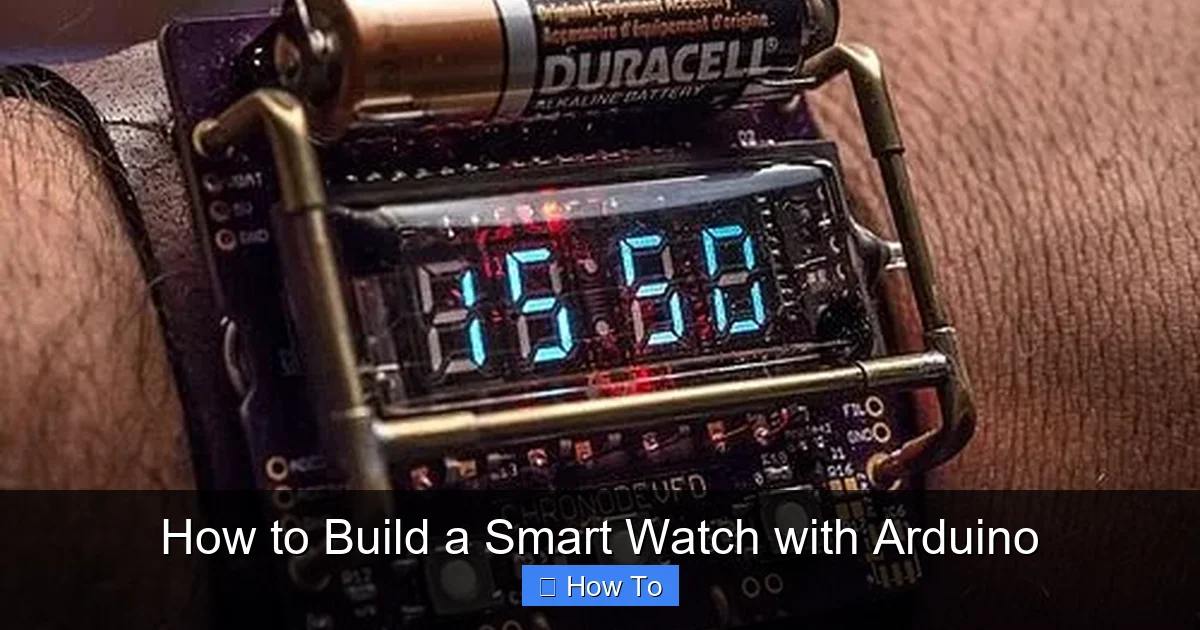

Visual guide about How to Build a Smart Watch with Arduino

Image source: europe1.discourse-cdn.com

Before we dive into the build, let’s talk about what you’ll need. Don’t worry—this isn’t a shopping spree. Most of these components are affordable and widely available online. I’ve broken it down into essentials and nice-to-haves, so you can start simple and upgrade later.

Essential Components:

  • Arduino-compatible microcontroller – I recommend the Arduino Nano 33 IoT or ESP32. Both have built-in Wi-Fi and Bluetooth, which are crucial for smartwatch features like syncing data or receiving notifications.
  • OLED display (0.96” or 1.3”) – This will show the time, steps, heart rate, or whatever you program. I prefer the SSD1306 driver because it’s well-supported in the Arduino library.
  • Lithium-ion battery (3.7V, 100–200mAh) – Small but powerful. Look for one with a JST connector for easy plug-and-play.
  • Charging module (TP4056) – So you can recharge your watch without removing the battery.
  • Strap and case – 3D-printed cases are popular, but you can also use a small plastic box or even a repurposed watch band. Comfort matters!
  • Jumper wires and soldering kit – For connecting everything. If you’re new to soldering, start with a basic kit and practice on scrap wires first.
  • Push buttons or capacitive touch sensors – For navigating menus or turning the screen on/off.

Optional (But Helpful):

  • Heart rate sensor (like MAX30102) – Adds fitness tracking.
  • Accelerometer (MPU6050) – For step counting and gesture control.
  • Real-time clock (RTC) module (DS3231) – Keeps accurate time even when the watch is off.
  • MicroSD card module – For logging data like heart rate over time.

Software & Tools:

  • Arduino IDE – Free and easy to use. Download it from the official site.
  • Libraries – You’ll need to install a few, like Adafruit SSD1306, Wire, and ESP32 BLE if using an ESP32.
  • USB cable – To upload code to your board.
  • Multimeter – Helpful for checking connections and voltage.

I started my first build with just the basics: Arduino Nano, OLED, battery, and a simple case. It wasn’t fancy, but it worked. Over time, I added sensors and improved the design. The key is to start small and build confidence.

Step-by-Step Guide to How to Build a Smart Watch with Arduino

Now for the fun part—actually building your smartwatch. I’ll walk you through each step like we’re sitting together at the workbench. No jargon, no assumptions. Just clear, doable instructions.

Step 1: Plan Your Design and Layout

Before touching any wires, sketch out your design. Think about where the screen, buttons, and battery will go. A cramped layout leads to short circuits and frustration. I learned this the hard way—my first attempt had wires crossing everywhere, and the battery overheated.

Ask yourself:

  • How big is the case?
  • Where will the screen face the user?
  • Can the user press the buttons easily?
  • Is there room for the battery and charging port?

I recommend using graph paper or a free tool like Fritzing to map out your circuit. It’s like a blueprint for your build. Also, decide on the core features: time display, step counter, notifications? Start with one or two, then expand.

Step 2: Set Up Your Arduino IDE

Download and install the Arduino IDE from arduino.cc. Once it’s open, go to Tools > Board and select your board (e.g., “Arduino Nano” or “ESP32 Dev Module”). Then pick the correct port under Tools > Port.

Next, install the necessary libraries:

  • Go to Sketch > Include Library > Manage Libraries.
  • Search for and install:
    • Adafruit SSD1306
    • Adafruit GFX Library
    • Wire (usually pre-installed)
    • If using ESP32: ESP32 BLE Arduino

These libraries help your code talk to the screen, sensors, and Bluetooth. Without them, nothing will work.

Step 3: Wire the OLED Display

The OLED display is the face of your smartwatch. Let’s connect it first.

Most OLEDs use I2C communication, which means only four wires:

  • VCC → 3.3V or 5V (check your display’s specs)
  • GND → Ground
  • SCL → Clock pin (A5 on Arduino Nano, GPIO22 on ESP32)
  • SDA → Data pin (A4 on Arduino Nano, GPIO21 on ESP32)

Double-check the pin labels on your display. I once connected SDA to SCL by mistake—nothing worked until I swapped them.

Once wired, upload this test code to see if the screen lights up:

#include
#include
#include

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0, 0);
  display.println("Hello, Smartwatch!");
  display.display();
}

void loop() {}

If you see text on the screen—congrats! The display is working.

Step 4: Add Power and Charging

Now let’s power your watch. Connect the lithium battery to the TP4056 charging module:

  • B+ → Battery positive
  • B- → Battery negative

Then connect the module’s output to your Arduino:

  • OUT+ → VIN (on Arduino Nano) or 5V (on ESP32)
  • OUT- → GND

Pro Tip: Never connect the battery directly to the Arduino without a charging module. Overcharging can cause fires. The TP4056 protects against that.

Plug in a USB cable to the charging module to test. The red LED should light up while charging, then turn off when full. Your Arduino should power on when the battery is connected.

Step 5: Program the Time Display

Let’s make your watch show the time. If you’re using an ESP32, you can sync with internet time via Wi-Fi. For Arduino Nano, add an RTC module (DS3231) for accuracy.

Here’s a simple time display using the RTC:

#include
#include
#include
#include

RTC_DS3231 rtc;
Adafruit_SSD1306 display(128, 64, &Wire, -1);

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  if (!rtc.begin()) {
    display.println("RTC failed");
    display.display();
    while (1);
  }
  if (rtc.lostPower()) {
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }
}

void loop() {
  DateTime now = rtc.now();
  display.clearDisplay();
  display.setCursor(0, 0);
  display.print("Time: ");
  display.print(now.hour());
  display.print(":");
  display.print(now.minute());
  display.display();
  delay(1000);
}

This will show the current time, updating every second. You can format it as HH:MM or add seconds.

Step 6: Add Buttons for Navigation

Buttons let you switch screens or turn the display on/off. Connect two push buttons:

  • One between a digital pin (e.g., D2) and GND
  • Another between D3 and GND

Use internal pull-up resistors in code:

pinMode(2, INPUT_PULLUP);
pinMode(3, INPUT_PULLUP);

When the button is pressed, the pin reads LOW. Use this to toggle between screens—time, steps, heart rate.

I added a simple menu system: press once to see steps, twice for heart rate, long press to turn off the screen.

Step 7: Integrate Sensors (Optional)

Want fitness tracking? Add sensors.

For step counting, wire the MPU6050 accelerometer:

  • VCC → 3.3V
  • GND → GND
  • SCL → A5 (or GPIO22)
  • SDA → A4 (or GPIO21)

Use the MPU6050_tockn library to read acceleration data. Detect steps by monitoring changes in movement.

For heart rate, the MAX30102 is great. It uses I2C too. Libraries like SparkFun MAX30102 make it easy to read pulse data.

Warning: Sensor accuracy varies. Don’t rely on your DIY watch for medical decisions. It’s for fun and learning!

Step 8: Add Bluetooth (ESP32 Only)

If you’re using an ESP32, you can receive notifications from your phone.

Use the BLE library to create a Bluetooth service. When your phone sends a message, the watch displays it.

Example: Pair your phone via Bluetooth, then send a test notification. The watch shows “New Message” on the screen.

This turns your watch into a true smart device—no phone needed to see alerts.

Step 9: Assemble the Case

Now for the final touch—putting it all together.

I 3D-printed a case using a free design from Thingiverse. You can also use a small plastic box or even a watch band with adhesive mounts.

Secure the components with hot glue or double-sided tape. Make sure wires don’t touch each other. I used heat shrink tubing on exposed connections.

Test everything before sealing the case. Once it’s closed, troubleshooting gets harder.

Step 10: Upload Final Code and Test

Combine all your code into one sketch. Include time, buttons, sensors, and Bluetooth if applicable.

Upload it to your board. Power on the watch. Does the screen light up? Do buttons work? Does it keep time?

If something’s off, check connections. Use the Serial Monitor (Ctrl+Shift+M) to debug.

I spent an hour once because a wire was loose. A multimeter helped me find the break.

Pro Tips & Common Mistakes to Avoid

Building a smartwatch is rewarding, but it’s not without pitfalls. Here’s what I’ve learned the hard way.

1. Start Simple
Don’t try to build a full-featured watch on day one. Begin with time and a button. Add features one at a time. I tried adding heart rate, GPS, and Bluetooth all at once—my board overheated and crashed.

2. Watch the Power
Arduino boards have voltage limits. The Nano runs on 5V, but the ESP32 is 3.3V. Don’t connect a 5V sensor directly to an ESP32 pin—it can fry the board. Use logic level converters if needed.

3. Secure Your Wires
Loose connections are the #1 cause of failure. Solder joints properly, and use strain relief (like tape or glue) so wires don’t snap when you move the watch.

4. Test Before You Close the Case
I can’t stress this enough. Once everything is sealed, fixing a bad connection means breaking the case. Test every function with the case open.

5. Manage Battery Life
OLEDs and sensors drain power fast. Use sleep modes in your code. Turn off the screen when not in use. I added a “deep sleep” feature that wakes the watch when a button is pressed.

6. Don’t Skip the Libraries
Writing code from scratch is tough. Use community libraries—they’re tested and save time. Just make sure they’re compatible with your board.

7. Document Your Build
Take photos, note wire colors, and save your code. If something breaks, you’ll know how to fix it. I keep a digital notebook with schematics and notes.
